Block diagram (Chassis / Safety)

Antilock Brake System (ABS)

Function Product Type Holder Status PKG Size (mm) Frequency (Hz) Temp. Range note
MCU (Main CLK) Xtal NX3225GD MP 3.2 x 2.5 x 0.8 7.98 ~ 12M -40 to +150℃ 2 pads
MCU (Main CLK) Xtal NX3225GB MP 3.2 x 2.5 x 0.75 12, 16, 20, 24, 40M -40 to +150℃ 2 pads
MCU (Main CLK) Xtal NX2016GC MP 2.0 x 1.6 x 0.7 16, 20, 24, 40M -40 to +150℃ 2 pads

Electric Stability Control (ESC)

Function Product Type Holder Status PKG Size (mm) Frequency (Hz) Temp. Range note
MCU (Main CLK) Xtal NX3225GD MP 3.2 x 2.5 x 0.8 7.98 ~ 12M -40 to +150℃ 2 pads
MCU (Main CLK) Xtal NX3225GB MP 3.2 x 2.5 x 0.75 12, 16, 20, 24, 40M -40 to +150℃ 2 pads
MCU (Main CLK) Xtal NX2016GC MP 2.0 x 1.6 x 0.7 16, 20, 24, 40M -40 to +150℃ 2 pads

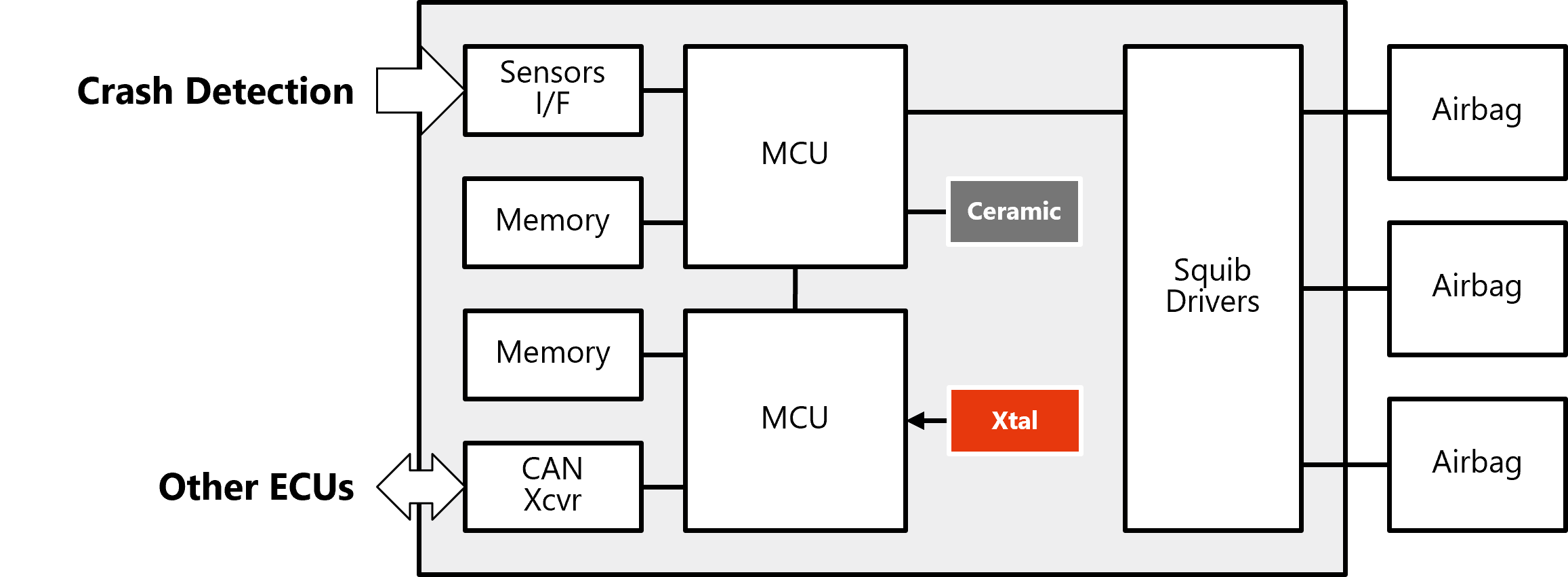

Airbag

Function Product Type Holder Status PKG Size (mm) Frequency (Hz) Temp. Range note
MCU (Main CLK) Xtal NX3225GD MP 3.2 x 2.5 x 0.8 7.98 ~ 12M -40 to +150℃ 2 pads
MCU (Main CLK) Xtal NX3225GB MP 3.2 x 2.5 x 0.75 12, 16, 20, 24, 40M -40 to +150℃ 2 pads
MCU (Main CLK) Xtal NX2016GC MP 2.0 x 1.6 x 0.7 16, 20, 24, 40M -40 to +150℃ 2 pads
