Synthetic Quartz Crystal for Optical Componet

Features

■Optimal Broadband Transmission Characteristics for Optical Applications

NDK's synthetic quartz crystals have extremely low impurity concentration and exhibit high internal transmittance over a wide range of wavelengths from vacuum ultraviolet to infrared wavelengths.

Optimal Broadband Transmission Characteristics for Optical Applications

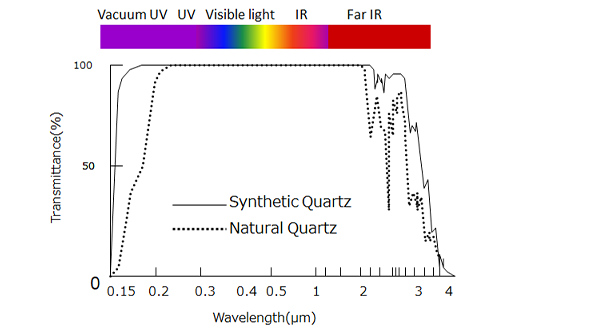

Transmission Characteristics of Quartz Plate (Thickness:5mm)

Synthetic Quartz Crystal for Optical Componet

■Birefringence

Since quartz crystals are birefringent, they can be used as birefringent plates or wave plates.

Birefringence

■Optical Activity

Quartz crystals exhibit optical activity, or the ability to rotate the plane of polarization when linearly polarized light passes through its interior.
They can be used for devices that analyze liquids, such as a saccharimeter.

Optical Activity

Quality

■High Quality

  • With few internal crystal defects that affect optical characteristics and a low density of foreign matter in the crystal, this synthetic quartz crystal is ideal for optical applications.
  • It possesses extremely high refractive index homogeneity based on crystal growth of high purity and low crystal defects.

Specifications

■Lumbered Synthetic Quartz Crystal for Optical Componet

Lumbered synthetic quartz crystal is a synthetic quartz crystal with X and Z planes machined to specified dimensions and angles.
The surfaces of lumbered synthetic quartz crystal are machined with high precision, enabling accurate wafer cutting.
We can provide lumbered synthetic quartz crystals in the following sizes.

As-Grown Quartz Crystal

Contact US

*Please inquire for special specifications.

■Lumbered / Block Outline Drawing

Z Plate

Z Plate

X Plate

X Plate

Precautions for Use

Make sure to read the following carefully before using synthetic quartz crystals:
Crystal quartz changes from α crystal to β quartz crystal at a temperature of 573℃ because of phase transition. This phase transition is reversible, but transition from β quartz crystal to α crystal does not take plase homogeneously, and twins are created. Therefore, careful attention must be paid to never allow the temperature to rise above 573℃.

■Quartz Wafer for Optical Componet

Please refer to the following page if you require Quartz Wafers for optical components and processed products.
