Block diagram (Fiber-optic Internet / Networks)

Category

Optical transceivers

WDM (Wavelength Division Multiplex)

Router

Function	Product Type	Holder	PKG Size (mm)	Frequency (Hz)	Temp. Range	note
Switch Card CPU	Xtal	NX2016SA	2.0 x 1.6 x 0.45	16 to 80M	-40 to +85℃	4 pads
Switch Card CPU	Xtal	NX3225SA	3.2 x 2.5 x 0.55	12 to 64M	-40 to +85℃	4 pads
Switch Card CPU	Xtal	NX3225GA	3.2 x 2.5 x 0.75	9.8 to 50M	-40 to +85℃	4 pads
Switch Card CPU	SPXO	NZ2520SH	2.5 x 2.0 x 0.9	1.5 to 170M	-40 to +125℃	CMOS
Timing Card Synchronous Clock Generator	Xtal	NX2016SA	2.0 x 1.6 x 0.45	16 to 80M	-40 to +85℃	4 pads
Timing Card Synchronous Clock Generator	Xtal	NX3225SA	3.2 x 2.5 x 0.55	12 to 64M	-40 to +85℃	4 pads
Timing Card Synchronous Clock Generator	Xtal	NX3225GA	3.2 x 2.5 x 0.75	9.8 to 50M	-40 to +85℃	4 pads
Timing Card Synchronous Clock Generator	SPXO	NZ2520SDA	2.5 x 2.0 x 0.9	48, 52, 54M	-40 to +85℃	CMOS, Low Noise -172dBc/Hz@100kHz
Timing Card Synchronous Clock Generator	OCXO	NH7050SA	7.0 x 5.0 x 3.3	10, 20, 30.72, 38.88M	-40 to +95℃	LVCOMS
Timing Card Synchronous Clock Generator	TCXO	NT5032BE	5.0 x 3.2 x 1.45	20M	-40 to +105℃	CMOS, Clipped Sine, 4PAD
Timing Card Synchronous Clock Generator	TCXO	NT5032BD	5.0 x 3.2 x 1.45	20M	-40 to +105℃	CMOS, Clipped Sine, 10PAD
Timing Card Synchronous Clock Generator	TCXO	NT5032Sx	5.0 x 3.2 x 1.5	20, 25, 38.88, 40, 48, 50, 54, 56MHz	-40 to +105℃	+/-50ppb, +/-100ppb, CMOS, Clipped Sine, 10PAD
Line Card Digital Signal Processor	SPXO	NP2016SA	2.0 x 1.6 x 0.7	156.25M	-40 to +105℃	+/-50ppm, LVPECL
Line Card Digital Signal Processor	SPXO	NP2016SB	2.0 x 1.6 x 0.7	156.25M	-40 to +105℃	+/-50ppm, LVDS
Line Card Digital Signal Processor	SPXO	NP2520SA	2.5 x 2.0 x 0.8	156.25M	-40 to +105℃	+/-50ppm, LVPECL
Line Card Digital Signal Processor	SPXO	NP2520SB	2.5 x 2.0 x 0.8	156.25M	-40 to +105℃	+/-50ppm, LVDS
Line Card Digital Signal Processor	SPXO	NP2520SC	2.5 x 2.0 x 0.8	156.25M	-40 to +105℃	+/-50ppm, HCSL

Optical transceivers

Function	Product Type	Holder	PKG Size (mm)	Frequency (Hz)	Temp. Range	note
Digital Signal Processor	SPXO	NP2016SA	2.0 x 1.6 x 0.7	156.25M	-40 to +105℃	+/-50ppm, LVPECL
Digital Signal Processor	SPXO	NP2016SB	2.0 x 1.6 x 0.7	156.25M	-40 to +105℃	+/-50ppm, LVDS
Digital Signal Processor	SPXO	NP2520SA	2.5 x 2.0 x 0.8	156.25M	-40 to +105℃	+/-50ppm, LVPECL
Digital Signal Processor	SPXO	NP2520SB	2.5 x 2.0 x 0.8	156.25M	-40 to +105℃	+/-50ppm, LVDS
Digital Signal Processor	SPXO	NP2520SC	2.5 x 2.0 x 0.8	156.25M	-40 to +105℃	+/-50ppm, HCSL

Multiplexer

Function	Product Type	Holder	PKG Size (mm)	Frequency (Hz)	Temp. Range	note
Digital Signal Processor	SPXO	NZ2016SH	2.0 x 1.6 x 0.7	25, 50M	-40 to +105℃	CMOS
Digital Signal Processor	SPXO	NZ2520SH	2.5 x 2.0 x 0.9	25, 50, 100, 125M	-40 to +105℃	CMOS

Ethernet

Function	Product Type	Holder	PKG Size (mm)	Frequency (Hz)	Temp. Range	note
MAC / Ethernet PHY	Xtal	NX2016SA	2.0 x 1.6 x 0.45	25, 50M	-40 to +85℃	4 pads
MAC / Ethernet PHY	Xtal	NX3225SA	3.2 x 2.5 x 0.55	25, 50M	-40 to +85℃	4 pads
MAC / Ethernet PHY	Xtal	NX3225GA	3.2 x 2.5 x 0.75	25, 50M	-40 to +85℃	4 pads
MAC / Ethernet PHY	SPXO	NZ2016SH	2.0 x 1.6 x 0.7	25, 50M	-40 to +105℃	CMOS
MAC / Ethernet PHY	SPXO	NZ2520SH	2.5 x 2.0 x 0.9	25, 50, 100, 125M	-40 to +105℃	CMOS
Digital Signal Processor	SPXO	NP2016SA	2.0 x 1.6 x 0.7	156.25M	-40 to +105℃	+/-50ppm, LVPECL
Digital Signal Processor	SPXO	NP2016SB	2.0 x 1.6 x 0.7	156.25M	-40 to +105℃	+/-50ppm, LVDS
Digital Signal Processor	SPXO	NP2520SA	2.5 x 2.0 x 0.8	156.25M	-40 to +105℃	+/-50ppm, LVPECL
Digital Signal Processor	SPXO	NP2520SB	2.5 x 2.0 x 0.8	156.25M	-40 to +105℃	+/-50ppm, LVDS
Digital Signal Processor	SPXO	NP2520SC	2.5 x 2.0 x 0.8	156.25M	-40 to +105℃	+/-50ppm, HCSL

WDM (Wavelength Division Multiplex)

Function	Product Type	Holder	PKG Size (mm)	Frequency (Hz)	Temp. Range	note
Digital Signal Processor	SPXO	NZ2016SH	2.0 x 1.6 x 0.7	25, 50M	-40 to +105℃	CMOS
Digital Signal Processor	SPXO	NZ2520SH	2.5 x 2.0 x 0.9	25, 50, 100, 125M	-40 to +105℃	CMOS

G-PON (ONU)

Function	Product Type	Holder	PKG Size (mm)	Frequency (Hz)	Temp. Range	note
SerDes CDR	SPXO	NZ2016SH	2.0 x 1.6 x 0.7	1.5 to 80M	-40 to +105℃	CMOS
SerDes CDR	SPXO	NZ2520SH	2.5 x 2.0 x 0.9	1.5 to 170M	-40 to +105℃	CMOS
ONU SoC	Xtal	NX2016SA	2.0 x 1.6 x 0.45	16 to 80M	-40 to +85℃	4 pads
ONU SoC	Xtal	NX3225SA	3.2 x 2.5 x 0.55	12 to 64M	-40 to +85℃	4 pads
ONU SoC	Xtal	NX3225GA	3.2 x 2.5 x 0.75	9.8 to 50M	-40 to +85℃	4 pads
ONU SoC	SPXO	NZ2016SH	2.0 x 1.6 x 0.7	1.5 to 80M	-40 to +105℃	CMOS
ONU SoC	SPXO	NZ2520SH	2.5 x 2.0 x 0.9	1.5 to 170M	-40 to +105℃	CMOS
Ethernet PHY	Xtal	NX2016SA	2.0 x 1.6 x 0.45	25, 50M	-40 to +85℃	4 pads
Ethernet PHY	Xtal	NX3225SA	3.2 x 2.5 x 0.55	25, 50M	-40 to +85℃	4 pads
Ethernet PHY	Xtal	NX3225GA	3.2 x 2.5 x 0.75	25, 50M	-40 to +85℃	4 pads
Ethernet PHY	SPXO	NZ2016SH	2.0 x 1.6 x 0.7	25, 50M	-40 to +105℃	CMOS
Ethernet PHY	SPXO	NZ2520SH	2.5 x 2.0 x 0.9	25, 50, 100, 125M	-40 to +105℃	CMOS

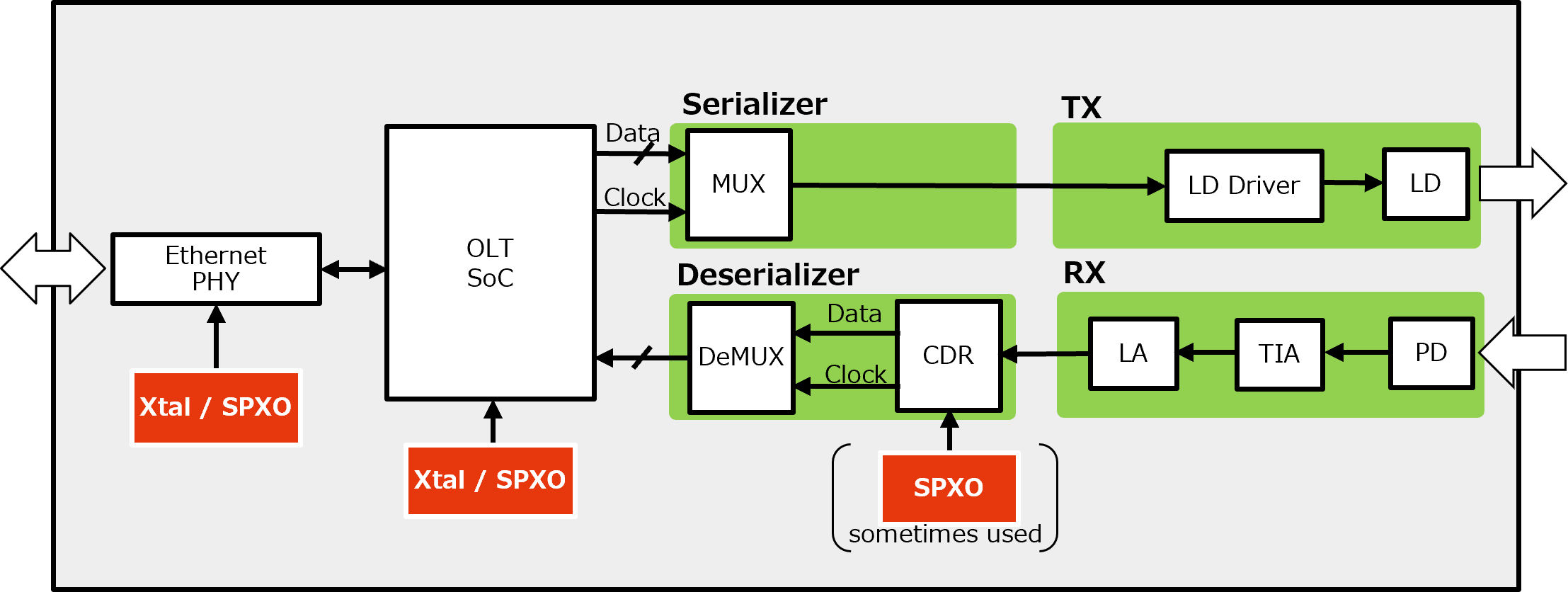

G-PON (OLT)

Function	Product Type	Holder	PKG Size (mm)	Frequency (Hz)	Temp. Range	note
SerDes CDR	SPXO	NZ2016SH	2.0 x 1.6 x 0.7	1.5 to 80M	-40 to +105℃	CMOS
SerDes CDR	SPXO	NZ2520SH	2.5 x 2.0 x 0.9	1.5 to 170M	-40 to +105℃	CMOS
ONU SoC	Xtal	NX2016SA	2.0 x 1.6 x 0.45	16 to 80M	-40 to +85℃	4 pads
ONU SoC	Xtal	NX3225SA	3.2 x 2.5 x 0.55	12 to 64M	-40 to +85℃	4 pads
ONU SoC	Xtal	NX3225GA	3.2 x 2.5 x 0.75	9.8 to 50M	-40 to +85℃	4 pads
ONU SoC	SPXO	NZ2016SH	2.0 x 1.6 x 0.7	1.5 to 80M	-40 to +105℃	CMOS
ONU SoC	SPXO	NZ2520SH	2.5 x 2.0 x 0.9	1.5 to 170M	-40 to +105℃	CMOS
Ethernet PHY	Xtal	NX2016SA	2.0 x 1.6 x 0.45	25, 50M	-40 to +85℃	4 pads
Ethernet PHY	Xtal	NX3225SA	3.2 x 2.5 x 0.55	25, 50M	-40 to +85℃	4 pads
Ethernet PHY	Xtal	NX3225GA	3.2 x 2.5 x 0.75	25, 50M	-40 to +85℃	4 pads
Ethernet PHY	SPXO	NZ2016SH	2.0 x 1.6 x 0.7	25, 50M	-40 to +105℃	CMOS
Ethernet PHY	SPXO	NZ2520SH	2.5 x 2.0 x 0.9	25, 50, 100, 125M	-40 to +105℃	CMOS
