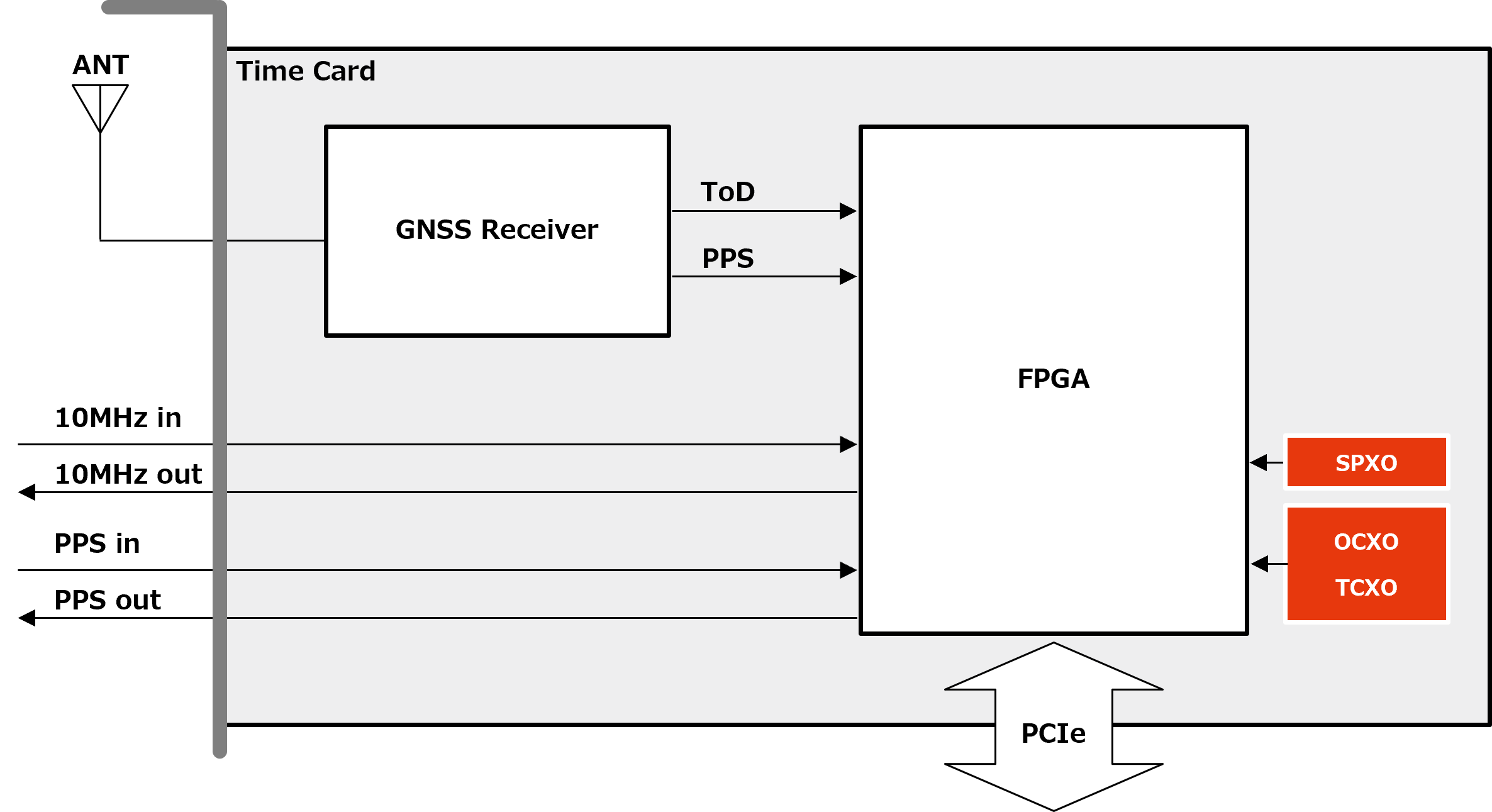

Block diagram (数据中心 - AI/ML)

Time Card


Function Product Type Holder PKG Size (mm) Frequency (Hz) Temp. Range note
FPGA OCXO NH25M22TE 25.4 x 22 x 12.1 10, 20M -40 to +85℃ +/-3ppb, CMOS
FPGA OCXO NH25M22WK 25.4 x 22 x 11 20M -40 to +85℃ +/-10ppb, CMOS
FPGA OCXO NH7050SA 7.0 x 5.0 x 3.3 10, 20, 30.72, 38.88M -40 to +95℃ +/-20ppb, +/-50ppb, CMOS
FPGA TCXO NT5032BE 5.0 x 3.2 x 1.45 10, 20, 24.576, 30.72, 38.88M -40 to +85℃ +/-280ppb, CMOS, Clipped Sine, 4PAD
FPGA TCXO NT5032BD 5.0 x 3.2 x 1.45 10, 20, 24.576, 30.72, 38.88M -40 to +85℃ +/-280ppb, CMOS, Clipped Sine, 10PAD
FPGA TCXO NT5032Sx 5.0 x 3.2 x 1.5 20, 25, 38.88, 40, 48, 50, 54, 56MHz -40 to +105℃ +/-50ppb, +/-100ppb, CMOS, Clipped Sine, 10PAD
FPGA SPXO NP2016SA 2.0 x 1.6 x 0.7 100M, 125M, 156.25M -40 to +105℃ +/-50ppm, LVPECL
FPGA SPXO NP2016SB 2.0 x 1.6 x 0.7 100M, 125M, 156.25M -40 to +105℃ +/-50ppm, LVDS
FPGA SPXO NP2520SA 2.5 x 2.0 x 0.8 100M, 125M, 156.25M -40 to +105℃ +/-50ppm, LVPECL
FPGA SPXO NP2520SB 2.5 x 2.0 x 0.8 100M, 125M, 156.25M -40 to +105℃ +/-50ppm, LVDS
FPGA SPXO NP2520SC 2.5 x 2.0 x 0.8 100M, 125M, 156.25M -40 to +105℃ +/-50ppm, HCSL

NIC / Smart NIC


Function Product Type Holder PKG Size (mm) Frequency (Hz) Temp. Range note
FPGA
Network Controller
SPXO NP2016SA 2.0 x 1.6 x 0.7 100M, 125M, 156.25M -40 to +105℃ +/-50ppm, LVPECL
FPGA
Network Controller
SPXO NP2016SB 2.0 x 1.6 x 0.7 100M, 125M, 156.25M -40 to +105℃ +/-50ppm, LVDS
FPGA
Network Controller
SPXO NP2520SA 2.5 x 2.0 x 0.8 100M, 125M, 156.25M -40 to +105℃ +/-50ppm, LVPECL
FPGA
Network Controller
SPXO NP2520SB 2.5 x 2.0 x 0.8 100M, 125M, 156.25M -40 to +105℃ +/-50ppm, LVDS
FPGA
Network Controller
SPXO NP2520SC 2.5 x 2.0 x 0.8 100M, 125M, 156.25M -40 to +105℃ +/-50ppm, HCSL
USB Hub Xtal NX2016SA 2.0 x 1.6 x 0.45 16 to 80M -40 to +85℃ 4 pads
USB Hub Xtal NX3225SA 3.2 x 2.5 x 0.55 12 to 64M -40 to +85℃ 4 pads
USB Hub Xtal NX3225GA 3.2 x 2.5 x 0.75 9.8 to 50M -40 to +85℃ 4 pads
USB Hub SPXO NZ2520SH 2.5 x 2.0 x 0.9 1.5 to 170M -40 to +125℃ +/-50ppm, CMOS
USB Hub SPXO NZ2520SEB 2.5 x 2.0 x 0.9 1.5 to 32M -40 to +85℃ +/-25ppm, CMOS
Advanced Timing
Synchronization
OCXO NH25M22TE 25.4 x 22 x 12.1 10, 20M -40 to +85℃ +/-3ppb, CMOS
Advanced Timing
Synchronization
OCXO NH25M22WK 25.4 x 22 x 11 20M -40 to +85℃ +/-10ppb, CMOS
Advanced Timing
Synchronization
OCXO NH7050SA 7.0 x 5.0 x 3.3 10, 20, 30.72, 38.88M -40 to +95℃ +/-20ppb, +/-50ppb, CMOS
Advanced Timing
Synchronization
TCXO NT5032BE 5.0 x 3.2 x 1.45 10, 20, 24.576, 30.72, 38.88M -40 to +85℃ +/-280ppb, CMOS, Clipped Sine, 4PAD
Advanced Timing
Synchronization
TCXO NT5032BD 5.0 x 3.2 x 1.45 10, 20, 24.576, 30.72, 38.88M -40 to +85℃ +/-280ppb, CMOS, Clipped Sine, 10PAD
Advanced Timing
Synchronization
TCXO NT5032Sx 5.0 x 3.2 x 1.5 20, 25, 38.88, 40, 48, 50, 54, 56MHz -40 to +105℃ +/-50ppb, +/-100ppb, CMOS, Clipped Sine, 10PAD
Optical Transceiver /
Digital Signal Processor
SPXO NP2016SA 2.0 x 1.6 x 0.7 156.25M -40 to +105℃ +/-50ppm, LVPECL
Optical Transceiver /
Digital Signal Processor
SPXO NP2016SB 2.0 x 1.6 x 0.7 156.25M -40 to +105℃ +/-50ppm, LVDS
Optical Transceiver /
Digital Signal Processor
SPXO NP2520SA 2.5 x 2.0 x 0.8 156.25M -40 to +105℃ +/-50ppm, LVPECL
Optical Transceiver /
Digital Signal Processor
SPXO NP2520SB 2.5 x 2.0 x 0.8 156.25M -40 to +105℃ +/-50ppm, LVDS
Optical Transceiver /
Digital Signal Processor
SPXO NP2520SC 2.5 x 2.0 x 0.8 156.25M -40 to +105℃ +/-50ppm, HCSL

Accelerator Card


NVLink®is a registered trademark of Nvidia Corporation.

Function Product Type Holder PKG Size (mm) Frequency (Hz) Temp. Range note
ASIC AI/ML SPXO NZ2520SH 2.5 x 2.0 x 0.9 1.5 to 170M -40 to +125℃ +/-50ppm, CMOS
ASIC AI/ML SPXO NZ2520SEB 2.5 x 2.0 x 0.9 1.5 to 32M -40 to +85℃ +/-25ppm, CMOS
ASIC AI/ML SPXO NZ2520SDA 2.5 x 2.0 x 0.9 48, 52, 54M -40 to +85℃ CMOS, Low Noise -172dBc/Hz@100kHz
ASIC AI/ML SPXO NP2016SA 2.0 x 1.6 x 0.7 100M, 125M, 156.25M -40 to +105℃ +/-50ppm, LVPECL
ASIC AI/ML SPXO NP2016SB 2.0 x 1.6 x 0.7 100M, 125M 156.25M -40 to +105℃ +/-50ppm, LVDS
ASIC AI/ML SPXO NP2520SA 2.5 x 2.0 x 0.8 100M, 125M, 156.25M -40 to +105℃ +/-50ppm, LVPECL
ASIC AI/ML SPXO NP2520SB 2.5 x 2.0 x 0.8 100M, 125M 156.25M -40 to +105℃ +/-50ppm, LVDS
ASIC AI/ML SPXO NP2520SC 2.5 x 2.0 x 0.8 100M, 125M, 156.25M -40 to +105℃ +/-50ppm, HCSL
Clock Generator Xtal NX2016SA 2.0 x 1.6 x 0.45 16 to 80M -40 to +85℃ 4 pads
Clock Generator Xtal NX3225SA 3.2 x 2.5 x 0.55 12 to 64M -40 to +85℃ 4 pads
Clock Generator Xtal NX3225GA 3.2 x 2.5 x 0.75 9.8 to 50M -40 to +85℃ 4 pads
Clock Generator SPXO NZ2520SH 2.5 x 2.0 x 0.9 1.5 to 170M -40 to +125℃ +/-50ppm, CMOS
Clock Generator SPXO NZ2520SEB 2.5 x 2.0 x 0.9 1.5 to 32M -40 to +85℃ +/-25ppm, CMOS
Clock Generator SPXO NZ2520SDA 2.5 x 2.0 x 0.9 48, 52, 54M -40 to +85℃ CMOS, Low Noise -172dBc/Hz@100kHz
