Block Diagram (智能手机)
- 用途
-
Communications (5G / 4G / Basic communications)
| Function | Product Type | Holder | Status | PKG Size (mm) | Frequency (Hz) | Temp. Range | note |
| Wifi6 / BT5.2 (37.4MHz) |
Xtal | NX1210AB | MP | 1.2 x 1.0 x 0.25 | 26 to 52M | -30 to +85℃ | 4 pads |
| Wifi6 / BT5.2 (37.4MHz) |
Xtal | NX1612SA | MP | 1.6 x 1.2 x 0.30 | 24 to 80M | -30 to +85℃ | 4 pads |
| Wifi6 / BT5.2 (37.4MHz) |
Xtal | NX2016SA | MP | 2.0 x 1.6 x 0.45 | 16 to 80M | -40 to +85℃ | 4 pads |
| Wifi6 / BT5.2 (37.4MHz) |
Xtal | NX2520SA | MP | 2.5 x 2.0 x 0.50 | 16 to 80M | -40 to +85℃ | 4 pads |
| Wifi6 / BT5.2 (37.4MHz) |
Xtal | NX3225SA | MP | 3.2 x 2.5 x 0.55 | 12 to 64M | -40 to +85℃ | 4 pads |
| NFC Controller (27.12MHz) |
Xtal | NX1210AB | MP | 1.2 x 1.0 x 0.25 | 26 to 52M | -30 to +85℃ | 4 pads |
| NFC Controller (27.12MHz) |
Xtal | NX1612SA | MP | 1.6 x 1.2 x 0.30 | 24 to 80M | -30 to +85℃ | 4 pads |
| NFC Controller (27.12MHz) |
Xtal | NX2016SA | MP | 2.0 x 1.6 x 0.45 | 16 to 80M | -40 to +85℃ | 4 pads |
| NFC Controller (27.12MHz) |
Xtal | NX2520SA | MP | 2.5 x 2.0 x 0.50 | 16 to 80M | -40 to +85℃ | 4 pads |
| NFC Controller (27.12MHz) |
Xtal | NX3225SA | MP | 3.2 x 2.5 x 0.55 | 12 to 64M | -40 to +85℃ | 4 pads |
| Clock Generator (76.8MHz) |
Xtal with Thermistor | NX1210AC | MP | 1.2 x 1.0 x 0.55 | 38.4 to 96M | -30 to +85℃ | 4 pads |
| Clock Generator (76.8MHz) |
Xtal with Thermistor | NX1612SD | MP | 1.6 x 1.2 x 0.65 | 26 to 76.8M | -30 to +85℃ | 4 pads |
| Clock Generator (76.8MHz) |
Xtal with Thermistor | NX2016SF | MP | 2.0 x 1.6 x 0.65 | 19.2 to 52M | -30 to +85℃ | 4 pads |
| Clock Generator (52MHz) |
Xtal with Thermistor | NX1210AC | MP | 1.2 x 1.0 x 0.55 | 38.4 to 96M | -30 to +85℃ | 4 pads |
| Clock Generator (52MHz) |
Xtal with Thermistor | NX1612SD | MP | 1.6 x 1.2 x 0.65 | 26 to 76.8M | -30 to +85℃ | 4 pads |
| Clock Generator (52MHz) |
Xtal with Thermistor | NX2016SF | MP | 2.0 x 1.6 x 0.65 | 19.2 to 52M | -30 to +85℃ | 4 pads |

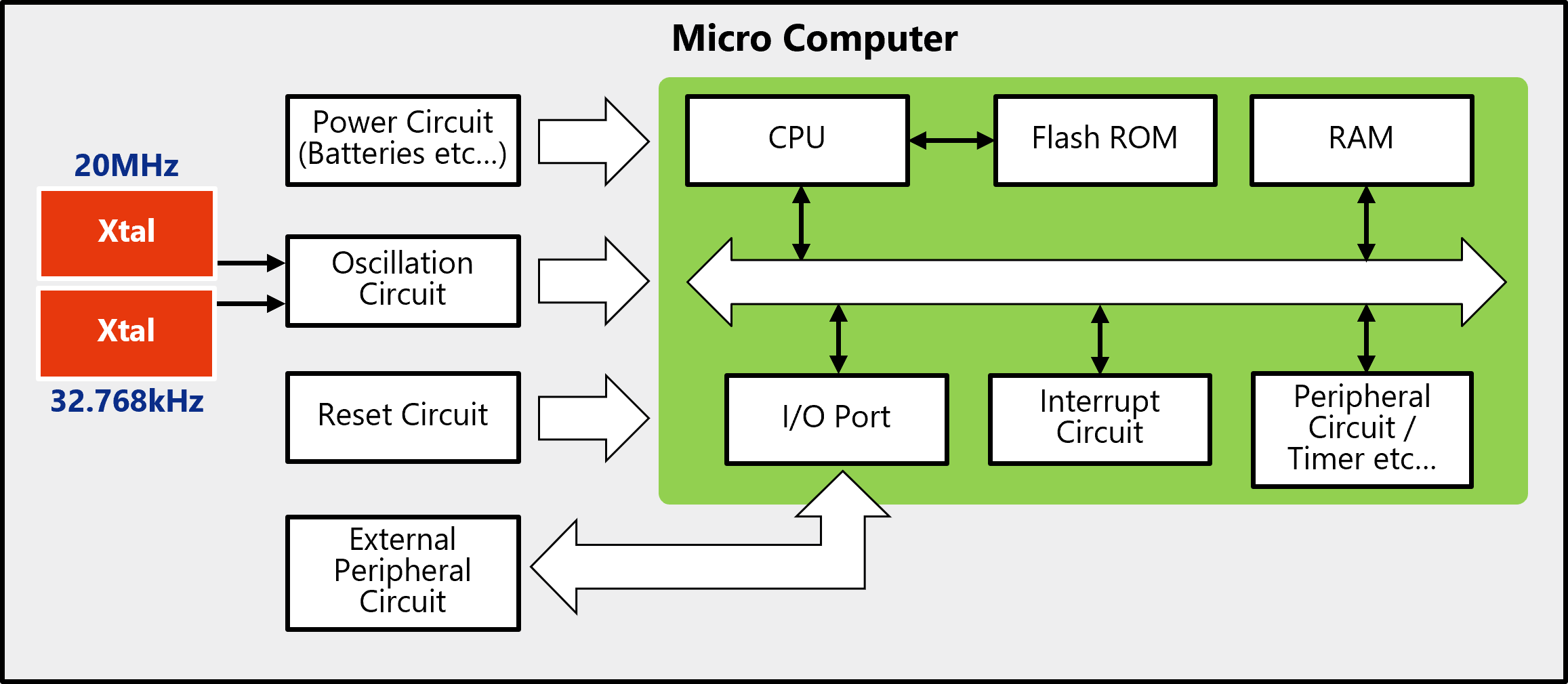

Microcomputer
| Function | Product Type | Holder | Status | PKG Size (mm) | Frequency (Hz) | Temp. Range | note |
| Oscillation Circuit | Xtal | NX1210AB | MP | 1.2 x 1.0 x 0.25 | 26 to 52M | -30 to +85℃ | 4 pads |
| Oscillation Circuit | Xtal | NX1612SA | MP | 1.6 x 1.2 x 0.30 | 24 to 80M | -30 to +85℃ | 4 pads |
| Oscillation Circuit | Xtal | NX2016SA | MP | 2.0 x 1.6 x 0.45 | 16 to 80M | -40 to +85℃ | 4 pads |
| Oscillation Circuit | Xtal | NX2520SA | MP | 2.5 x 2.0 x 0.50 | 16 to 80M | -40 to +85℃ | 4 pads |
| Oscillation Circuit | Xtal | NX3225SA | MP | 3.2 x 2.5 x 0.55 | 12 to 64M | -40 to +85℃ | 4 pads |
| Oscillation Circuit | Xtal | NX3225GA | MP | 3.2 x 2.5 x 0.75 | 9.8 to 50M | -40 to +85℃ | 4 pads |
| Oscillation Circuit | Xtal | NX5032GA | MP | 5.0 x 3.2 x 1.3 | 8 to 50M | -40 to +85℃ | 2 pads |
| Oscillation Circuit | Xtal | NX1610SA | MP | 1.6 x 1.0 x 0.45 | 0.032768M | -40 to +85℃ | 2 pads |
| Oscillation Circuit | Xtal | NX1610SE | MP | 1.6 x 1.0 x 0.45 | 0.032768M | -40 to +85℃ | 2 pads |
| Oscillation Circuit | Xtal | NX2012SA | MP | 2.0 x 1.2 x 0.55 | 0.032768M | -40 to +85℃ | 2 pads |
| Oscillation Circuit | Xtal | NX2012SE | MP | 2.0 x 1.2 x 0.55 | 0.032768M | -40 to +85℃ | 2 pads |
| Oscillation Circuit | Xtal | NX3215SA | MP | 3.2 x 1.5 x 0.8 | 0.032768M | -40 to +85℃ | 2 pads |
| Oscillation Circuit | Xtal | NX3215SE | MP | 3.2 x 1.5 x 0.8 | 0.032768M | -40 to +85℃ | 2 pads |
Power Control
| Function | Product Type | Holder | Status | PKG Size (mm) | Frequency (Hz) | Temp. Range | note |
| Timer / Frequency Divider | Xtal | NX1210AB | MP | 1.2 x 1.0 x 0.25 | 26 to 52M | -30 to +85℃ | 4 pads |
| Timer / Frequency Divider | Xtal | NX1612SA | MP | 1.6 x 1.2 x 0.30 | 24 to 80M | -30 to +85℃ | 4 pads |
| Timer / Frequency Divider | Xtal | NX2016SA | MP | 2.0 x 1.6 x 0.45 | 16 to 80M | -40 to +85℃ | 4 pads |
| Timer / Frequency Divider | Xtal | NX2520SA | MP | 2.5 x 2.0 x 0.50 | 16 to 80M | -40 to +85℃ | 4 pads |
| Timer / Frequency Divider | Xtal | NX3225SA | MP | 3.2 x 2.5 x 0.55 | 12 to 64M | -40 to +85℃ | 4 pads |
| Timer / Frequency Divider | Xtal | NX3225GA | MP | 3.2 x 2.5 x 0.75 | 9.8 to 50M | -40 to +85℃ | 4 pads |
| Timer / Frequency Divider | Xtal | NX5032GA | MP | 5.0 x 3.2 x 1.3 | 8 to 50M | -40 to +85℃ | 2 pads |
GPS
| Function | Product Type | Holder | Status | PKG Size (mm) | Frequency (Hz) | Temp. Range | note |
| RF Front-End Integrated LNA |
TCXO | NT1612SA (±0.5ppm) |
MP | 1.6 x 1.2 x 0.55 | 12 to 52M | -30 to +85℃ | Clipped Sine |
| RF Front-End Integrated LNA |
TCXO | NT1612SA (±2.0ppm) |
MP | 1.6 x 1.2 x 0.55 | 12 to 52M | -30 to +85℃ | Clipped Sine |
| RF Front-End Integrated LNA |
TCXO | NT2016SA (±0.5ppm) |
MP | 2.0 x 1.6 x 0.8 | 12 to 52M | -30 to +85℃ | Clipped Sine |
| RF Front-End Integrated LNA |
TCXO | NT2016SA (±2.0ppm) |
MP | 2.0 x 1.6 x 0.8 | 12 to 52M | -30 to +85℃ | Clipped Sine |
| RF Front-End Integrated LNA |
TCXO | NT2016SB | MP | 2.0 x 1.6 x 0.8 | 12 to 52M | -30 to +85℃ | Clipped Sine |
| RF Front-End Integrated LNA |
TCXO | NT2016SJA (±0.5ppm) |
MP | 2.0 x 1.6 x 0.8 | 16 to 76.8M | -30 to +85℃ | Clipped Sine |
| RF Front-End Integrated LNA |
TCXO | NT2016SJA (±2.0ppm) |
MP | 2.0 x 1.6 x 0.8 | 16 to 76.8M | -30 to +85℃ | Clipped Sine |
| RF Front-End Integrated LNA |
Xtal | NX1210AB | MP | 1.2 x 1.0 x 0.25 | 26 to 52M | -30 to +85℃ | 4 pads |
| RF Front-End Integrated LNA |
Xtal | NX1612SA | MP | 1.6 x 1.2 x 0.30 | 24 to 80M | -30 to +85℃ | 4 pads |
| RF Front-End Integrated LNA |
Xtal | NX2016SA | MP | 2.0 x 1.6 x 0.45 | 16 to 80M | -40 to +85℃ | 4 pads |
| RF Front-End Integrated LNA |
Xtal | NX2520SA | MP | 2.5 x 2.0 x 0.50 | 16 to 80M | -40 to +85℃ | 4 pads |
| RF Front-End Integrated LNA |
Xtal | NX3225SA | MP | 3.2 x 2.5 x 0.55 | 12 to 64M | -40 to +85℃ | 4 pads |
| RF Front-End Integrated LNA |
Xtal | NX1610SA | MP | 1.6 x 1.0 x 0.45 | 0.032768M | -40 to +85℃ | 2 pads |
| RF Front-End Integrated LNA |
Xtal | NX1610SE | MP | 1.6 x 1.0 x 0.45 | 0.032768M | -40 to +85℃ | 2 pads |
| RF Front-End Integrated LNA |
Xtal | NX2012SA | MP | 2.0 x 1.2 x 0.55 | 0.032768M | -40 to +85℃ | 2 pads |
| RF Front-End Integrated LNA |
Xtal | NX2012SE | MP | 2.0 x 1.2 x 0.55 | 0.032768M | -40 to +85℃ | 2 pads |
| RF Front-End Integrated LNA |
Xtal | NX3215SA | MP | 3.2 x 1.5 x 0.8 | 0.032768M | -40 to +85℃ | 2 pads |
| RF Front-End Integrated LNA |
Xtal | NX3215SE | MP | 3.2 x 1.5 x 0.8 | 0.032768M | -40 to +85℃ | 2 pads |
