Application
Block diagram (Electric)
- Category
-

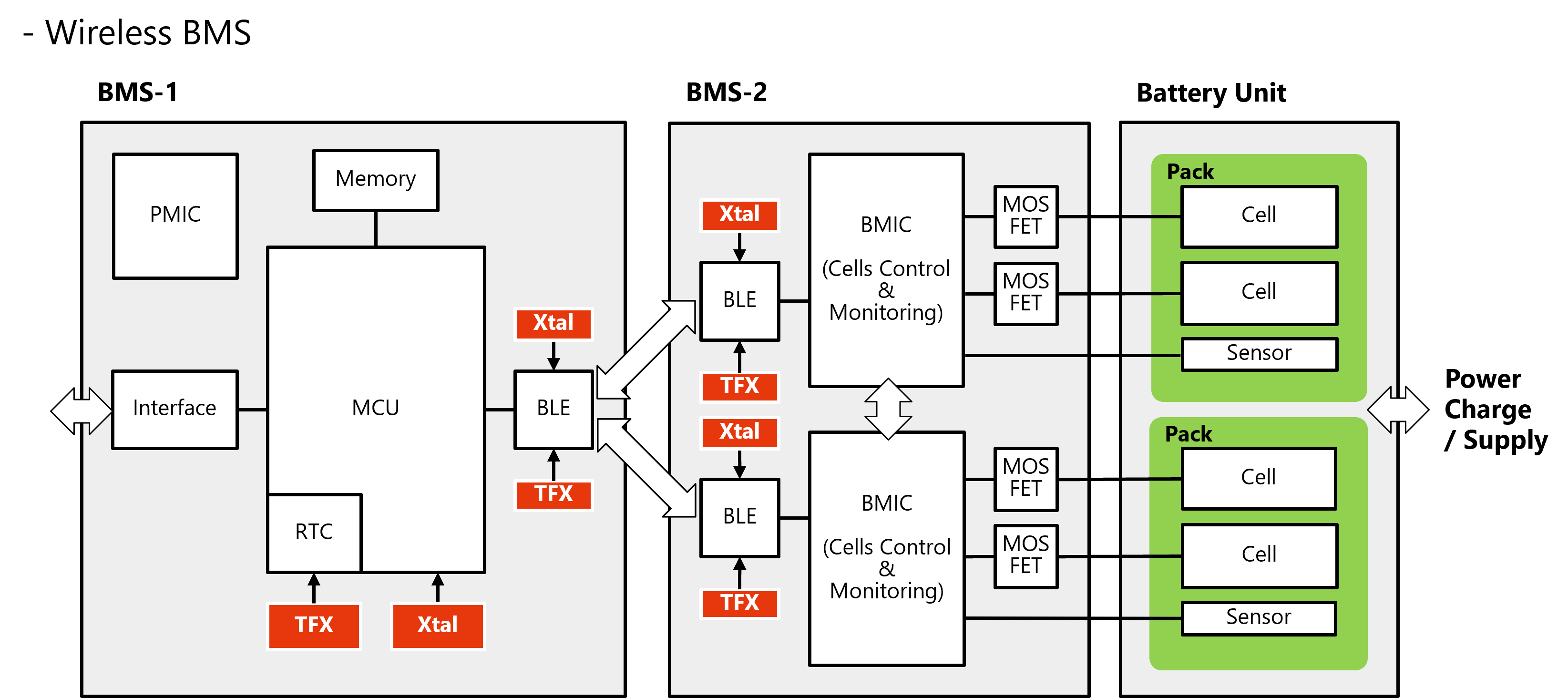

Battery Management System (BMS) / Wireless BMS
| Function | Product Type | Holder | Status | PKG Size (mm) | Frequency (Hz) | Temp. Range | note |
| MCU (Main CLK) | Xtal | NX3225GD | MP | 3.2 x 2.5 x 0.8 | 7.98 ~ 12M | -40 to +150℃ | 2 pads |
| MCU (Main CLK) | Xtal | NX3225GB | MP | 3.2 x 2.5 x 0.75 | 12, 16, 20, 24, 40M | -40 to +150℃ | 2 pads |
| MCU (Main CLK) | Xtal | NX3225GA | MP | 3.2 x 2.5 x 0.75 | 12, 16, 20, 24, 40M | -40 to +150℃ | 4 pads |
| MCU (Main CLK) | Xtal | NX2016GC | MP | 2.0 x 1.6 x 0.7 | 16, 20, 24, 40M | -40 to +150℃ | 2 pads |
| MCU (RTC) | Tuning Fork | NX3215SA | MP | 3.2 x 1.5 x 0.8 | 32.768k | -40 to +125℃ | 2 pads |
| MCU (RTC) | Tuning Fork | NX2012SA | MP | 2.0 x 1.2 x 0.55 | 32.768k | -40 to +125℃ | 2 pads |
| BLE (RF) | Xtal | NX2016SA | MP | 2.0 x 1.6 x 0.45 | 16, 24, 32, 37.4, 48M | -40 to +125℃ | 4 pads |
| BLE (RF) | Xtal | NX1612SA | MP | 1.6 x 1.2 x 0.3 | 24, 32, 37.4, 48M | -40 to +125℃ | 4 pads |
| BLE (RTC) | Tuning Fork | NX3215SA | MP | 3.2 x 1.5 x 0.8 | 32.768k | -40 to +125℃ | 2 pads |
| BLE (RTC) | Tuning Fork | NX2012SA | MP | 2.0 x 1.2 x 0.55 | 32.768k | -40 to +125℃ | 2 pads |
Motor (Traction Inverter)
| Function | Product Type | Holder | Status | PKG Size (mm) | Frequency (Hz) | Temp. Range | note |
| MCU (Main CLK) | Xtal | NX3225GD | MP | 3.2 x 2.5 x 0.8 | 7.98 ~ 12M | -40 to +150℃ | 2 pads |
| MCU (Main CLK) | Xtal | NX3225GB | MP | 3.2 x 2.5 x 0.75 | 12, 16, 20, 24, 40M | -40 to +150℃ | 2 pads |
| MCU (Main CLK) | Xtal | NX3225GA | MP | 3.2 x 2.5 x 0.75 | 12, 16, 20, 24, 40M | -40 to +150℃ | 4 pads |
| MCU (Main CLK) | Xtal | NX2016GC | MP | 2.0 x 1.6 x 0.7 | 16, 20, 24, 40M | -40 to +150℃ | 2 pads |
Converter
| Function | Product Type | Holder | Status | PKG Size (mm) | Frequency (Hz) | Temp. Range | note |
| MCU (Main CLK) | Xtal | NX3225GD | MP | 3.2 x 2.5 x 0.8 | 7.98 ~ 12M | -40 to +150℃ | 2 pads |
| MCU (Main CLK) | Xtal | NX3225GB | MP | 3.2 x 2.5 x 0.75 | 12, 16, 20, 24, 40M | -40 to +150℃ | 2 pads |
| MCU (Main CLK) | Xtal | NX3225GA | MP | 3.2 x 2.5 x 0.75 | 12, 16, 20, 24, 40M | -40 to +150℃ | 4 pads |
| MCU (Main CLK) | Xtal | NX2016GC | MP | 2.0 x 1.6 x 0.7 | 16, 20, 24, 40M | -40 to +150℃ | 2 pads |
Charger (from electrical grid)
| Function | Product Type | Holder | Status | PKG Size (mm) | Frequency (Hz) | Temp. Range | note |
| MCU (Main CLK) | Xtal | NX3225GD | MP | 3.2 x 2.5 x 0.8 | 7.98 ~ 12M | -40 to +150℃ | 2 pads |
| MCU (Main CLK) | Xtal | NX3225GB | MP | 3.2 x 2.5 x 0.75 | 12, 16, 20, 24, 40M | -40 to +150℃ | 2 pads |
| MCU (Main CLK) | Xtal | NX3225GA | MP | 3.2 x 2.5 x 0.75 | 12, 16, 20, 24, 40M | -40 to +150℃ | 4 pads |
| MCU (Main CLK) | Xtal | NX2016GC | MP | 2.0 x 1.6 x 0.7 | 16, 20, 24, 40M | -40 to +150℃ | 2 pads |
