UVIR-cut Filter
- Can be used as an optical filter to adjust color temperature and density.
- By applying various coatings to various substrates, a variety of optical properties can be realized, either by the substrate alone or by combining multiple substrates.
Applications
- Digital Camera
- Digital Camera for Broadcast / Cinema
IR-cut Filter
Features
- Three types are available for different purposes, including the IR-cut coating type, the IR absorbing glass type, and the hybrid type combining IR absorbing glass and IR-cut coating.
- We can also accommodate combinations with UV absorbing glass and UVIR-cut.
- Other special coatings include low-incident-angle-dependent AR coating, which improves the incident angle dependence of the coating, low stress AR coating, which enables deposition of thin substrates of less than 0.2 mm with minimal warpage, and other coatings with conductive film and water repellent film functions.
IR-cut Coating Filter
IR-cut Coating Filter Transmittance
IR-cut Coating Filter Reflectance
IR-cut Absorption Filter
IR-cut Absorption Filter Transmittance
IR-cut Absorption Filter Reflectance
IR-cut Hybrid Filter
IR-cut Hybrid Filter Transmittance
IR-cut Hybrid Filter Reflectance
UV-cut Filter
Features
- Two types are available for different purposes, including the UV-cut coating type and the UV absorbing glass type.
- We can also accommodate combinations with other glass materials and coatings, such as IR absorbing glass and UVIR-cut coatings.
UV-cut Absorption Filter
UV-cut Absorption Filter Transmittance
UV-cut Absorption Filter Reflectance
UV-cut Coating Filter
UV-cut Coating Filter Transmittance

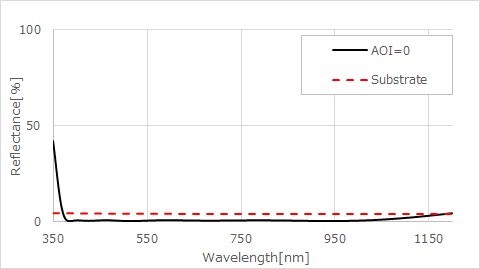

UV-cut Coating Filter Reflectance
Specifications Example
IR-cut Coating Filter
| External Dimensions | Max. 60mm×60mm |
|---|---|
| External Dimensions Tolerance | ±0.1mm |
| Substrate Materials | Optical Clear Glass (N-BK7, etc.) |
| Thickness Dimenson | 0.5mm±0.03mm |
| Coating | a-Face UVIR-cut Coating b-Face AR Coating |
| Transmittance | T≧90%@450～650nm |
| 50%T@680±8nm | |
| Tavg≦5.0%@700～1000nm | |
| Surface Reflectance | Rmax≦ 4.0%@450～650nm |
| Surface Quality | Appearance standards; Point defects: Average diameter of 20 μm or less is acceptable, Line defects: Width of 5 μm or less is acceptable |
*Please inquire for special specifications.
Warranty Items
Test items include temperature, humidity, impact resistance, heat resistance, etc. for the environmental and mechanical properties of optical components.
We set test items and conditions for each component and guarantee the properties of the component. However, warranty items and conditions vary depending on the shape, properties, application, and environment of the optical component.
| Subjected to High Temperature | 85℃ 1000H |
|---|---|
| Subjected to Low Temperature | -40℃ 1000H |
| Subjected to High Temperature and High Humidity | 60℃90％RH～95%RH 1000H |
| Heat Shock | -40℃ 2H 、85℃ 2H、100℃/H 10 Cycles |
| Subjected to Thermal Shock | -40℃/85℃ 30 Minutes Each 100 Cycles |
| Coating Adhesion Strength | Cellophane tape (LP-18) is applied to the component, rubbed with the fingers three times, and then quickly pulled off in a vertical direction ten times |
| Abrasion Resistance | The vapor-deposited surface is pressed with lens-cleaning paper (DUSPER K-3) with a pressing pressure of 4.9 N/cm2 (500 gf/cm2)
1 round-trip/second continuous, round-trip distance 10 mm, 100 round-trips |
| Solvent Resistance Test | Using lens-cleaning paper (DUSPEP K-3) in solvents such as IPA, acetone, ethanol, etc. with 2.94 N (300 gf) 1 round-trip/second continuous, round-trip distance 10 mm, 100 round-trips |
