Application

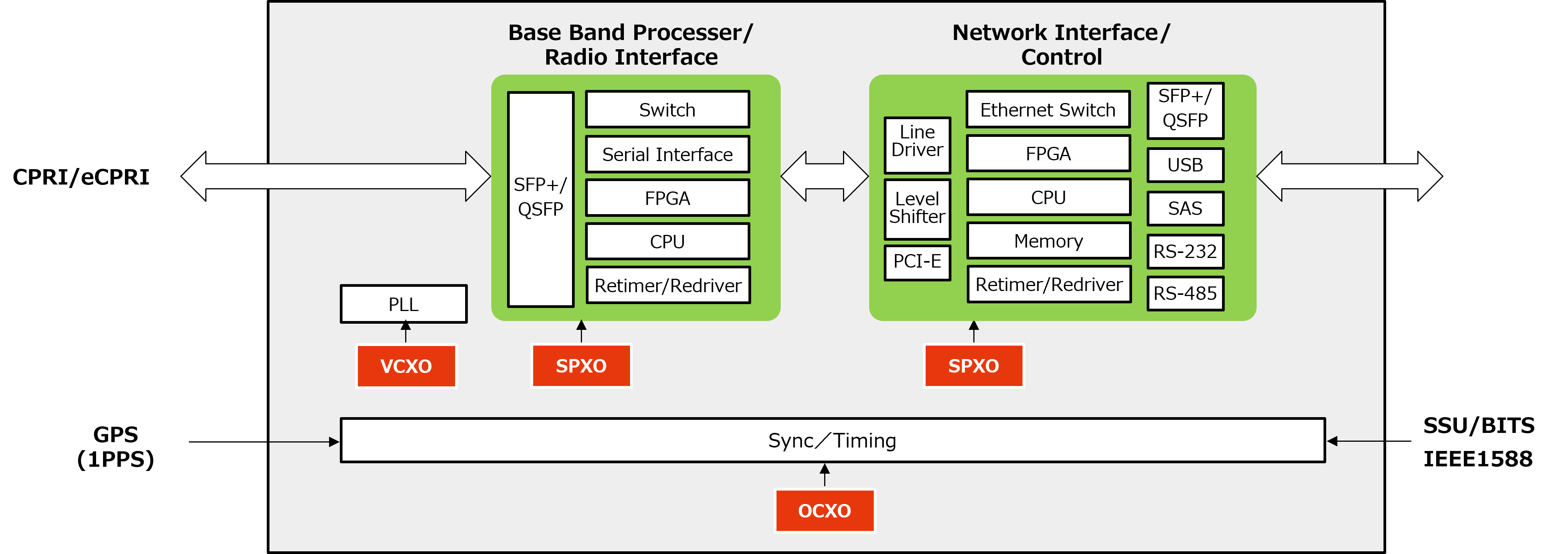

Block diagram (Base stations 5G / 4G)

Category

BBU / CU / DU

RU

BBU / CU / DU


Function Product Type Holder PKG Size (mm) Frequency (Hz) Temp. Range note
PLL VCXO NV5032SC 5.0 x 3.2 x 1.2 122.88M -40 to +105℃ LVPECL
Base Band Processer /
Radio Interface		 SPXO NZ2520SH 2.5 x 2.0 x 0.9 50, 100M -40 to +105℃ CMOS
Base Band Processer /
Radio Interface		 SPXO NP2520SA 2.5 x 2.0 x 0.8 125, 156.25M -40 to +105℃ LVPECL
Network Interface / Control SPXO NZ2520SH 2.5 x 2.0 x 0.9 50, 100M -40 to +105℃ CMOS
Network Interface / Control SPXO NP2520SA 2.5 x 2.0 x 0.8 125, 156.25M -40 to +105℃ LVPECL
Sync / Timing OCXO NH25M22TE 25.4 x 22 x 12.1 10, 20M -40 to +85℃ LVCMOS

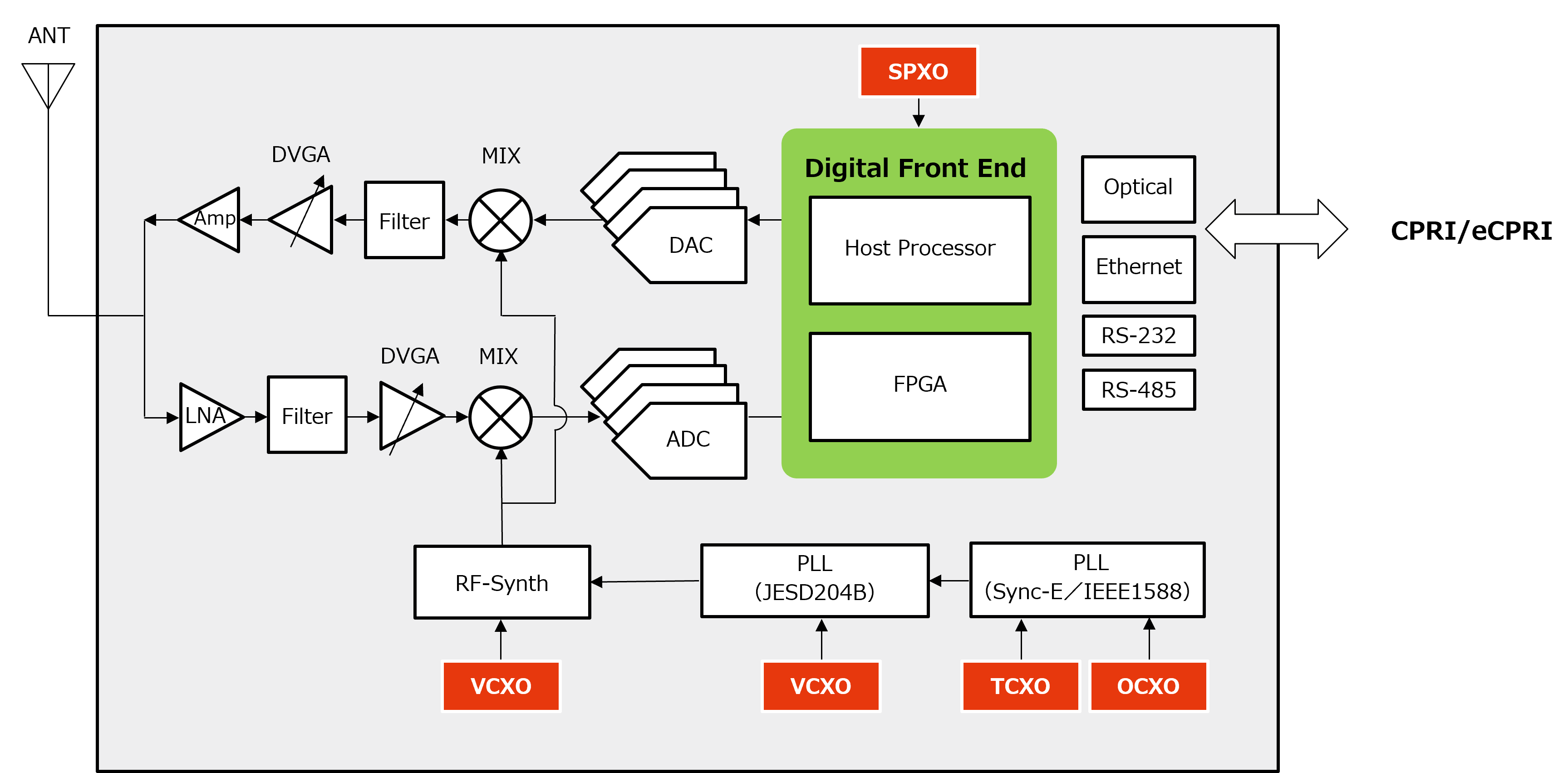

RU


Function Product Type Holder PKG Size (mm) Frequency (Hz) Temp. Range note
Digital Front End SPXO NZ2520SH 2.5 x 2.0 x 0.9 50, 100M -40 to +105℃ CMOS
Digital Front End SPXO NP3225SA 3.2 x 2.5 x 0.9 125, 156.25M -40 to +105℃ LVPECL
RF-Synth VCXO NV5032SC 5.0 x 3.2 x 1.2 122.88M -40 to +105℃ LVPECL
PLL (JESD204B) VCXO NV5032SC 5.0 x 3.2 x 1.2 122.88M -40 to +105℃ LVPECL
PLL (Sync-E / IEEE1588) TCXO NT5032BE 5.0 x 3.2 x 1.45 10, 20, 24.576, 30.72, 38.88M -40 to +85℃ +/-280ppb, CMOS, Clipped Sine, 4PAD
PLL (Sync-E / IEEE1588) TCXO NT5032BD 5.0 x 3.2 x 1.45 10, 20, 24.576, 30.72, 38.88M -40 to +85℃ +/-280ppb, CMOS, Clipped Sine, 10PAD
PLL (Sync-E / IEEE1588) TCXO NT5032Sx 5.0 x 3.2 x 1.5 20, 25, 38.88, 40, 48, 50, 54, 56MHz -40 to +105℃ +/-50ppb, +/-100ppb, CMOS, Clipped Sine, 10PAD
PLL (Sync-E / IEEE1588) OCXO NH7050SA 7.0 x 5.0 x 3.3 10, 20, 30.72, 38.88M -40 to +95℃ LVCOMS
