Application
Block diagram (Fiber-optic Internet / Networks)
- Category
-
Router
| Function | Product Type | Holder | Status | PKG Size (mm) | Frequency (Hz) | Temp. Range | note |
| Switch Card CPU |
Xtal | NX2016SA | MP | 2.0 x 1.6 x 0.45 | 16 to 80M | -40 to +85℃ | 4 pads |
| Switch Card CPU |
Xtal | NX3225SA | MP | 3.2 x 2.5 x 0.55 | 12 to 64M | -40 to +85℃ | 4 pads |
| Switch Card CPU |
Xtal | NX3225GA | MP | 3.2 x 2.5 x 0.75 | 9.8 to 50M | -40 to +85℃ | 4 pads |
| Switch Card CPU |
SPXO | NZ2520SH | MP | 2.5 x 2.0 x 0.9 | 1.5 to 170M | -40 to +125℃ | CMOS |
| Timing Card Synchronous Clock Generator |
Xtal | NX2016SA | MP | 2.0 x 1.6 x 0.45 | 16 to 80M | -40 to +85℃ | 4 pads |
| Timing Card Synchronous Clock Generator |
Xtal | NX3225SA | MP | 3.2 x 2.5 x 0.55 | 12 to 64M | -40 to +85℃ | 4 pads |
| Timing Card Synchronous Clock Generator |
Xtal | NX3225GA | MP | 3.2 x 2.5 x 0.75 | 9.8 to 50M | -40 to +85℃ | 4 pads |
| Timing Card Synchronous Clock Generator |
SPXO | NZ2520SDA | MP | 2.5 x 2.0 x 0.9 | 48, 52, 54M | -40 to +85℃ | CMOS, Low Noise -172dBc/Hz@100kHz |
| Timing Card Synchronous Clock Generator |
OCXO | NH7050SA | MP | 7.0 x 5.0 x 3.3 | 10, 20, 30.72, 38.88M | -40 to +95℃ | LVCOMS |
| Timing Card Synchronous Clock Generator |
OCXO | NH9070WC NH9070WD |
MP | 9.5 x 7.3 x 4.1 | 10, 20, 30.72M | -40 to +95℃ | LVCOMS |
| Timing Card Synchronous Clock Generator |
TCXO | NT5032BA | MP | 5.0 x 3.2 x 1.8 | 10, 12.8, 19.2, 19.44, 20, 24.576, 25, 25.6, 26M | -40 to +85℃ | CMOS, Clipped Sine |
| Timing Card Synchronous Clock Generator |
TCXO | NT5032BB | MP | 5.0 x 3.2 x 1.8 | 10, 12.8, 19.2, 19.44, 20, 24.576, 25, 25.6, 26M | -40 to +85℃ | CMOS, Clipped Sine |
| Timing Card Synchronous Clock Generator |
TCXO | NT7050BC | MP | 7.0 x 5.0 x 2.0 | 10, 12.8, 19.2, 19.44, 20, 24.576, 25, 25.6, 26M | -40 to +85℃ | CMOS, Clipped Sine |
| Timing Card Synchronous Clock Generator |
TCXO | NT7050BB | MP | 7.0 x 5.0 x 2.0 | 10, 12.8, 19.2, 19.44, 20, 24.576, 25, 25.6, 26M | -40 to +85℃ | CMOS, Clipped Sine |
| Line Card Digital Signal Processor |
SPXO | NP2520SA | ES | 2.5 x 2.0 x 0.8 | 156.25M | -40 to +85℃ | +/-50ppm, LVPECL |
| Line Card Digital Signal Processor |
SPXO | NP2520SB | ES | 2.5 x 2.0 x 0.8 | 156.25M | -40 to +85℃ | +/-50ppm, LVDS |
| Line Card Digital Signal Processor |
SPXO | NP3225SA | MP | 3.2 x 2.5 x 0.9 | 156.25M | -40 to +85℃ | +/-50ppm, LVPECL |
| Line Card Digital Signal Processor |
SPXO | NP3225SB | MP | 3.2 x 2.5 x 0.9 | 156.25M | -40 to +85℃ | +/-50ppm, LVDS |
| Line Card Digital Signal Processor |
SPXO | NP5032S[ ] | MP | 5.0 x 3.2 x 1.2 | 15 to 2,100M | -40 to +85℃ | +/-10, +/-20, +/-50ppm, LVPECL, LVDS, etc |
| Line Card Digital Signal Processor |
SPXO | NP7050S[ ] | MP | 7.0 x 5.0 x 1.6 | 15 to 2,100M | -40 to +85℃ | +/-10, +/-20, +/-50ppm, LVPECL, LVDS, etc |

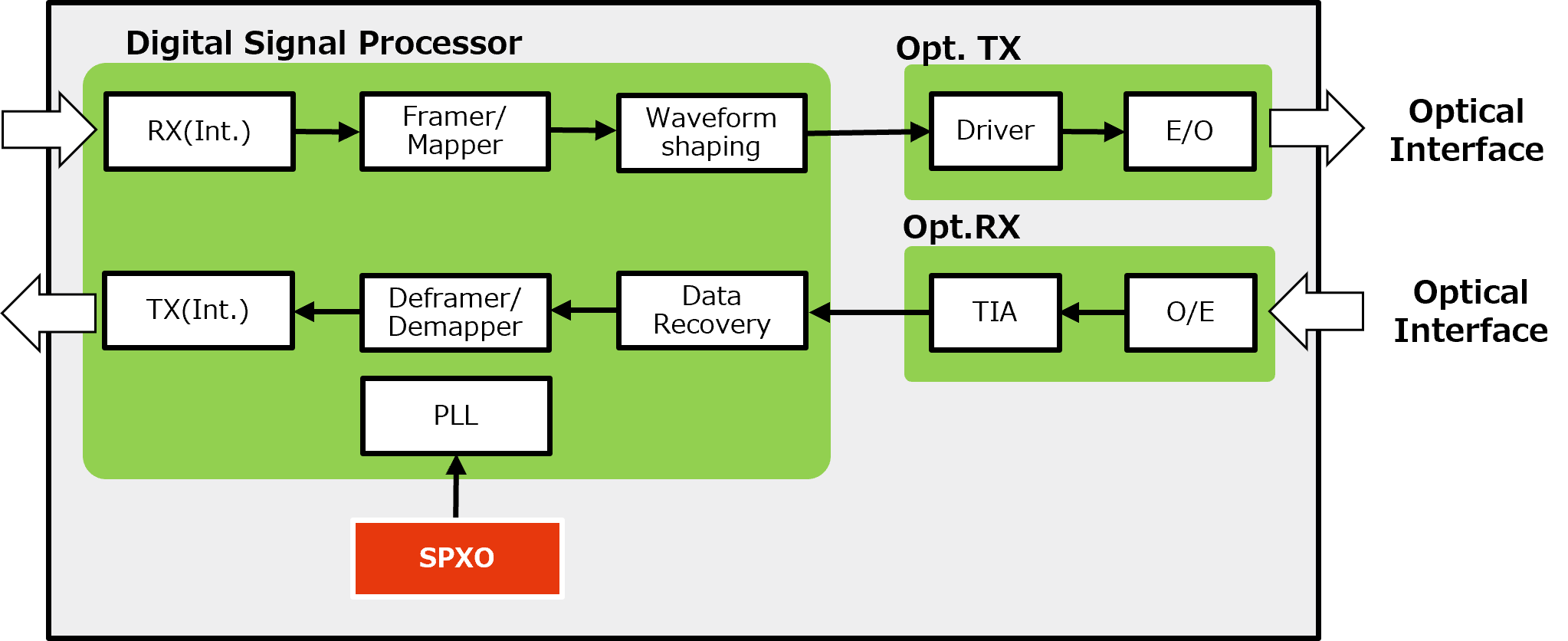

Optical transceivers
| Function | Product Type | Holder | Status | PKG Size (mm) | Frequency (Hz) | Temp. Range | note |
| Digital Signal Processor | SPXO | NP2520SA | ES | 2.5 x 2.0 x 0.8 | 156.25M | -40 to +85℃ | +/-50ppm, LVPECL |
| Digital Signal Processor | SPXO | NP2520SB | ES | 2.5 x 2.0 x 0.8 | 156.25M | -40 to +85℃ | +/-50ppm, LVDS |
| Digital Signal Processor | SPXO | NP3225SA | MP | 3.2 x 2.5 x 0.9 | 156.25M | -40 to +85℃ | +/-50ppm, LVPECL |
| Digital Signal Processor | SPXO | NP3225SB | MP | 3.2 x 2.5 x 0.9 | 156.25M | -40 to +85℃ | +/-50ppm, LVDS |
| Digital Signal Processor | SPXO | NP5032S[ ] | MP | 5.0 x 3.2 x 1.2 | 15 to 2,100M | -40 to +85℃ | +/-10, +/-20, +/-50ppm, LVPECL, LVDS, etc |
| Digital Signal Processor | SPXO | NP7050S[ ] | MP | 7.0 x 5.0 x 1.6 | 15 to 2,100M | -40 to +85℃ | +/-10, +/-20, +/-50ppm, LVPECL, LVDS, etc |
Multiplexer
| Function | Product Type | Holder | Status | PKG Size (mm) | Frequency (Hz) | Temp. Range | note |
| Digital Signal Processor | SPXO | NZ2016SH | MP | 2.0 x 1.6 x 0.7 | 25, 50M | -40 to +105℃ | CMOS |
| Digital Signal Processor | SPXO | NZ2520SH | MP | 2.5 x 2.0 x 0.9 | 25, 50, 100, 125M | -40 to +105℃ | CMOS |
| Digital Signal Processor | SPXO | NP5032S[ ] | MP | 5.0 x 3.2 x 1.2 | 15 to 2,100M | -40 to +85℃ | +/-10, +/-20, +/-50ppm, LVPECL, LVDS, etc |
| Digital Signal Processor | SPXO | NP7050S[ ] | MP | 7.0 x 5.0 x 1.6 | 15 to 2,100M | -40 to +85℃ | +/-10, +/-20, +/-50ppm, LVPECL, LVDS, etc |
| Digital Signal Processor | VCXO | NV5032S[ ] | MP | 5.0 x 3.2 x 1.2 | 15 to 2,100M | -40 to +85℃ | +/-10, +/-20, +/-50ppm, LVPECL, LVDS, etc |
| Digital Signal Processor | VCXO | NV7050S[ ] | MP | 7.0 x 5.0 x 1.6 | 15 to 2,100M | -40 to +85℃ | +/-10, +/-20, +/-50ppm, LVPECL, LVDS, etc |
Ethernet
| Function | Product Type | Holder | Status | PKG Size (mm) | Frequency (Hz) | Temp. Range | note |
| MAC / Ethernet PHY | Xtal | NX2016SA | MP | 2.0 x 1.6 x 0.45 | 25, 50M | -40 to +85℃ | 4 pads |
| MAC / Ethernet PHY | Xtal | NX3225SA | MP | 3.2 x 2.5 x 0.55 | 25, 50M | -40 to +85℃ | 4 pads |
| MAC / Ethernet PHY | Xtal | NX3225GA | MP | 3.2 x 2.5 x 0.75 | 25, 50M | -40 to +85℃ | 4 pads |
| MAC / Ethernet PHY | SPXO | NZ2016SH | MP | 2.0 x 1.6 x 0.7 | 25, 50M | -40 to +105℃ | CMOS |
| MAC / Ethernet PHY | SPXO | NZ2520SH | MP | 2.5 x 2.0 x 0.9 | 25, 50, 100, 125M | -40 to +105℃ | CMOS |
| Digital Signal Processor | SPXO | NP2520SA | ES | 2.5 x 2.0 x 0.8 | 156.25M | -40 to +85℃ | +/-50ppm, LVPECL |
| Digital Signal Processor | SPXO | NP2520SB | ES | 2.5 x 2.0 x 0.8 | 156.25M | -40 to +85℃ | +/-50ppm, LVDS |
| Digital Signal Processor | SPXO | NP3225SA | MP | 3.2 x 2.5 x 0.9 | 156.25M | -40 to +85℃ | +/-50ppm, LVPECL |
| Digital Signal Processor | SPXO | NP3225SB | MP | 3.2 x 2.5 x 0.9 | 156.25M | -40 to +85℃ | +/-50ppm, LVDS |
| Digital Signal Processor | SPXO | NP5032S[ ] | MP | 5.0 x 3.2 x 1.2 | 15 to 2,100M | -40 to +85℃ | +/-10, +/-20, +/-50ppm, LVPECL, LVDS, etc |
| Digital Signal Processor | SPXO | NP7050S[ ] | MP | 7.0 x 5.0 x 1.6 | 15 to 2,100M | -40 to +85℃ | +/-10, +/-20, +/-50ppm, LVPECL, LVDS, etc |

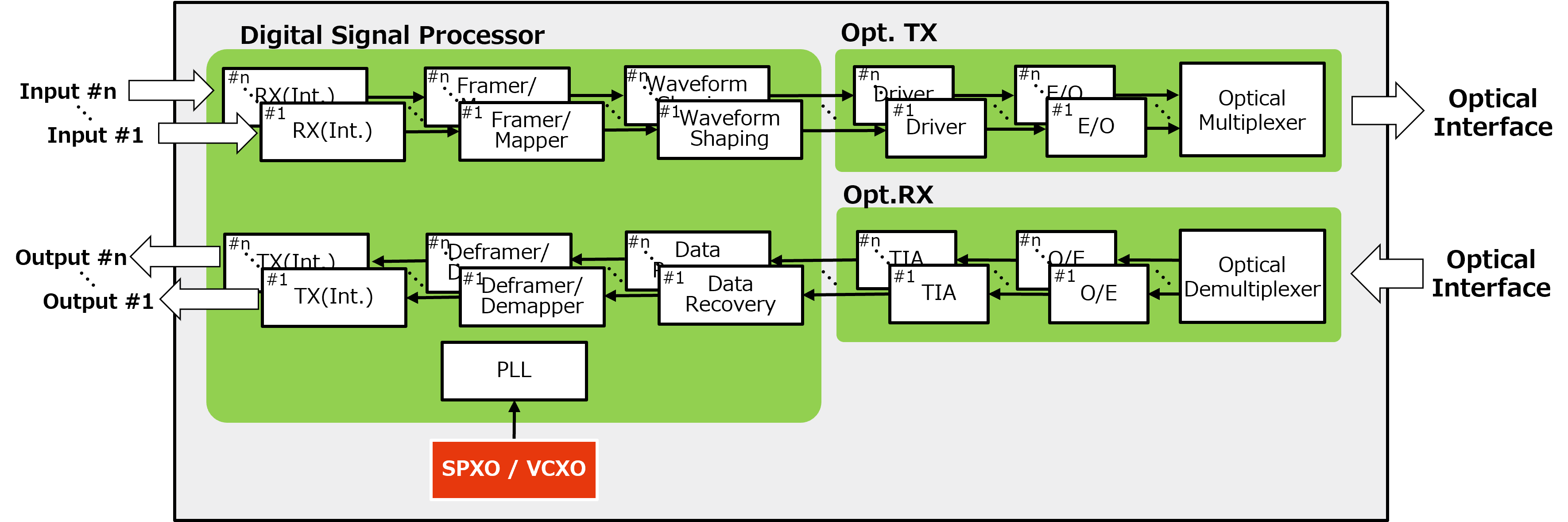

WDM (Wavelength Division Multiplex)
| Function | Product Type | Holder | Status | PKG Size (mm) | Frequency (Hz) | Temp. Range | note |
| Digital Signal Processor | SPXO | NZ2016SH | MP | 2.0 x 1.6 x 0.7 | 25, 50M | -40 to +105℃ | CMOS |
| Digital Signal Processor | SPXO | NZ2520SH | MP | 2.5 x 2.0 x 0.9 | 25, 50, 100, 125M | -40 to +105℃ | CMOS |
| Digital Signal Processor | SPXO | NP5032S[ ] | MP | 5.0 x 3.2 x 1.2 | 15 to 2,100M | -40 to +85℃ | +/-10, +/-20, +/-50ppm, LVPECL, LVDS, etc |
| Digital Signal Processor | SPXO | NP7050S[ ] | MP | 7.0 x 5.0 x 1.6 | 15 to 2,100M | -40 to +85℃ | +/-10, +/-20, +/-50ppm, LVPECL, LVDS, etc |
| Digital Signal Processor | VCXO | NV5032S[ ] | MP | 5.0 x 3.2 x 1.2 | 15 to 2,100M | -40 to +85℃ | +/-10, +/-20, +/-50ppm, LVPECL, LVDS, etc |
| Digital Signal Processor | VCXO | NV7050S[ ] | MP | 7.0 x 5.0 x 1.6 | 15 to 2,100M | -40 to +85℃ | +/-10, +/-20, +/-50ppm, LVPECL, LVDS, etc |
G-PON (ONU)
| Function | Product Type | Holder | Status | PKG Size (mm) | Frequency (Hz) | Temp. Range | note |
| SerDes CDR | SPXO | NZ2016SH | MP | 2.0 x 1.6 x 0.7 | 1.5 to 80M | -40 to +105℃ | CMOS |
| SerDes CDR | SPXO | NZ2520SH | MP | 2.5 x 2.0 x 0.9 | 1.5 to 170M | -40 to +105℃ | CMOS |
| ONU SoC | Xtal | NX2016SA | MP | 2.0 x 1.6 x 0.45 | 16 to 80M | -40 to +85℃ | 4 pads |
| ONU SoC | Xtal | NX3225SA | MP | 3.2 x 2.5 x 0.55 | 12 to 64M | -40 to +85℃ | 4 pads |
| ONU SoC | Xtal | NX3225GA | MP | 3.2 x 2.5 x 0.75 | 9.8 to 50M | -40 to +85℃ | 4 pads |
| ONU SoC | SPXO | NZ2016SH | MP | 2.0 x 1.6 x 0.7 | 1.5 to 80M | -40 to +105℃ | CMOS |
| ONU SoC | SPXO | NZ2520SH | MP | 2.5 x 2.0 x 0.9 | 1.5 to 170M | -40 to +105℃ | CMOS |
| Ethernet PHY | Xtal | NX2016SA | MP | 2.0 x 1.6 x 0.45 | 25, 50M | -40 to +85℃ | 4 pads |
| Ethernet PHY | Xtal | NX3225SA | MP | 3.2 x 2.5 x 0.55 | 25, 50M | -40 to +85℃ | 4 pads |
| Ethernet PHY | Xtal | NX3225GA | MP | 3.2 x 2.5 x 0.75 | 25, 50M | -40 to +85℃ | 4 pads |
| Ethernet PHY | SPXO | NZ2016SH | MP | 2.0 x 1.6 x 0.7 | 25, 50M | -40 to +105℃ | CMOS |
| Ethernet PHY | SPXO | NZ2520SH | MP | 2.5 x 2.0 x 0.9 | 25, 50, 100, 125M | -40 to +105℃ | CMOS |
G-PON (OLT)
| Function | Product Type | Holder | Status | PKG Size (mm) | Frequency (Hz) | Temp. Range | note |
| SerDes CDR | SPXO | NZ2016SH | MP | 2.0 x 1.6 x 0.7 | 1.5 to 80M | -40 to +105℃ | CMOS |
| SerDes CDR | SPXO | NZ2520SH | MP | 2.5 x 2.0 x 0.9 | 1.5 to 170M | -40 to +105℃ | CMOS |
| ONU SoC | Xtal | NX2016SA | MP | 2.0 x 1.6 x 0.45 | 16 to 80M | -40 to +85℃ | 4 pads |
| ONU SoC | Xtal | NX3225SA | MP | 3.2 x 2.5 x 0.55 | 12 to 64M | -40 to +85℃ | 4 pads |
| ONU SoC | Xtal | NX3225GA | MP | 3.2 x 2.5 x 0.75 | 9.8 to 50M | -40 to +85℃ | 4 pads |
| ONU SoC | SPXO | NZ2016SH | MP | 2.0 x 1.6 x 0.7 | 1.5 to 80M | -40 to +105℃ | CMOS |
| ONU SoC | SPXO | NZ2520SH | MP | 2.5 x 2.0 x 0.9 | 1.5 to 170M | -40 to +105℃ | CMOS |
| Ethernet PHY | Xtal | NX2016SA | MP | 2.0 x 1.6 x 0.45 | 25, 50M | -40 to +85℃ | 4 pads |
| Ethernet PHY | Xtal | NX3225SA | MP | 3.2 x 2.5 x 0.55 | 25, 50M | -40 to +85℃ | 4 pads |
| Ethernet PHY | Xtal | NX3225GA | MP | 3.2 x 2.5 x 0.75 | 25, 50M | -40 to +85℃ | 4 pads |
| Ethernet PHY | SPXO | NZ2016SH | MP | 2.0 x 1.6 x 0.7 | 25, 50M | -40 to +105℃ | CMOS |
| Ethernet PHY | SPXO | NZ2520SH | MP | 2.5 x 2.0 x 0.9 | 25, 50, 100, 125M | -40 to +105℃ | CMOS |
