The figure shows the main cutting angles of Quartz Wafers.
The figure shows the specifications of AT-cut plates. We can manufacture round and square plates.
Please specify the cutting angle (direction angle (θ)) and whether there are seed crystals or not.
We can also manufacture dimensions and thicknesses, and perform principal surface finishing upon request.
■Accuracy of Cutting Angles
Quartz Wafer For SAW Device
The figure shows the specifications of wafers for SAW devices.
Please specify the cutting angle (direction angle (θ)).
We can also manufacture thicknesses upon request.
Wafer For Tuning Fork Crystal Unit

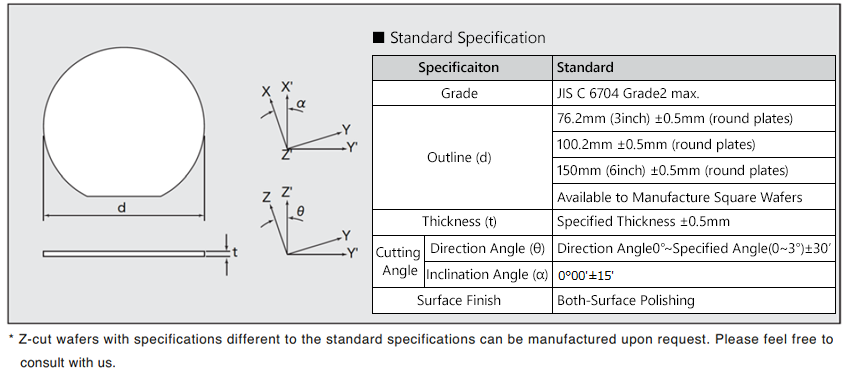

The figure shows the specifications of wafers for tuning fork crystal units.
Please specify the cutting angle (direction angle (θ), inclination angle (α)).
Wafers are available 3 inch and 4 inch sizes. We also plan on offering 6 inch sizes.
Quartz Wafer for Laminated Substrates
We offer wafers suitable for laminating with wafers other than quartz crystals. We can accommodate up to 6 inches.
The surface roughness Ra of the principal surface is finished to less than 0.5 nm, and the TTV (Total Thickness Variation) is finished to less than 0.5 μm.
Please try it out for laminated substrates.
