Crystal Oscillator SPXO

NP3225SA

RoHS Compliant Directive 2011/65/EU Directive(EU)2015/863

Pb free

AEC

Application

・5G compatible equipment, Base station, optical Network Unit, SDH/SONET equipment
・Low-end router, Ethernet, optical transceivers
・Automotive audio

Features

・LVPECL Differential output SPXO
・Compact : 3.2 x 2.5 x 0.9 mm
・Supply voltage : +2.5V or +3.3V
・Low phase jitter ：Typ. 90 fs @156.25 MHz
・Automatic mounting by taping and IR reflow (lead-free soldering) is possible
・Conforms to AEC-Q100/200

Related Documents

Data sheet

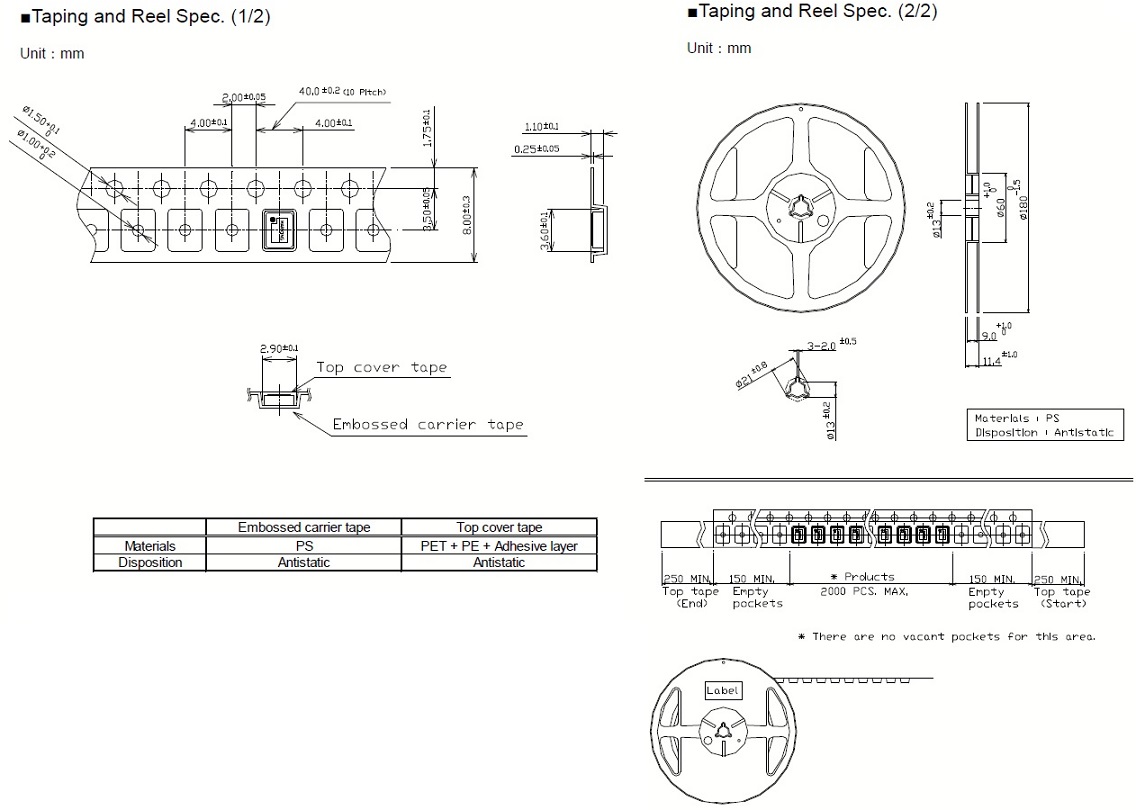

Taping and Reel

Mount condition

Measurement Circuit

RoHS

REACH

Halogen Free

Related Sites

Online Distributors
Item Symbol Value Unit
Nominal frequency range fnom
100 to 175 175 to 220
MHz
Package size (L×W×H) - 3.2×2.5×0.9 mm
Supply voltage Vcc
+2.5
+3.3
V
Current consumption ICC
Max. 60 Max. 70
mA
Stand-by current IST
Max. 15 Max. 30 Max. 15 Max. 30
μA
Output specification -

LVPECL

 -
Load RL 50 Ω
Storage temperature range Tstr -55 to +125 ℃
Operating temperature range Topr
-40 to +85 -40 to +105 -40 to +85 -40 to +105
℃
Overall frequency tolerance Δf/fnom
Max. ±50
ppm
Output voltage VOL
VCC -1.81 to VCC -1.62 (-40 to +85℃)
V
Output voltage VOH
VCC -1.025 to VCC -0.88 (-40 to +105℃)
V
Output voltage VOL
VCC -1.81 to VCC -1.62 (-40 to +105℃)
V
Output voltage VOH
VCC -1.04 to VCC -0.88 (-40 to +105℃)
V
Rise (tr), fall (tf) time (20% to 80% WaveForm) tr/tf
Max. 1
ns
Symmetry (20% to 80% WaveForm) SYM 45 to 55 %
Start-up time tsu
Max. 10
ms
Phase jitter (F = 156.25 MHz) tpj
Max. 1
ps
Specification number （Vcc=2.5V±5%） -
NSC5080A NSC5189A NSC5235A NSC5237A
-
Specification number （Vcc=3.3V±10%） -
NSC5341B NSC5342B NSC5235B NSC5237B
-

Stand-by function

#1 PAD input #4, 5 PAD output
H Level (0.7 VCC to VCC) or OPEN Operating
L Level (0.3 VCC max) High impedance

External dimensions

Output Wave 1
