Crystal Oscillator SPXO

2725T-High precision *NRND

RoHS Compliant Directive 2011/65/EU Directive(EU)2015/863

Pb free

Application

・Notebook PC, mobile information terminal, PC card, and video equipment

Features

・High-precision type
・Overall frequency tolerance : ±30 x 10?6
・Frequency range from 2.5 MHz to 75 MHz
・Ultra-compact and light. Dimensions : 5.0 x 3.2 x 1.0 mm, weight : 0.06 g
・Automatic mounting by taping and IR reflow (lead-free soldering) is possible
・Lead-free

Related Documents

Data sheet

Taping and Reel

Mount condition

Measurement Circuit

RoHS

REACH

Halogen Free

Related Sites

Distributor Inventory

List of Online Distributors
Item Symbol Value Unit
Nominal frequency range fnom
2.5 ≦ F ≦ 75
MHz
Package size (L×W×H) - 5.0×3.2×1.0 mm
Supply voltage Vcc
+3.3
V
Current consumption ICC
Max. 25
mA
Stand-by current IST
Max. 10
μA
Output specification -

CMOS

 -
Load CL Max. 15 pF
Storage temperature range Tstr -55 to +125 ℃
Operating temperature range Topr
-10 to +70
℃
Overall frequency tolerance Df/fnom
Max. ±30
ppm
Output voltage VOL
Max. 0.1 VCC
V
Output voltage VOH
Min. 0.9 VCC
V
Rise (tr), fall (tf) time tr/tf
Max. 5
ns
Symmetry SYM 45 to 55 %
Start-up time tsu
Max. 4 (2.5 ≦ F < 40MHz)
Max. 10 (40 ≦ F ≦ 75MHz)
ms
Specification number -
NSA6293C
-

Stand-by function

#1 PAD input #3 PAD output
H Level (0.7 VCC to VCC) or OPEN Operating
L Level (0.3 VCC max) High impedance

Current consumption

Nominal Frequency range(MHz) 2.5≦F＜20 20≦F＜40 40≦F＜60 60≦F≦75
Current consumption (mA) 8 MAX 15 MAX 22 MAX 25 MAX

External dimensions

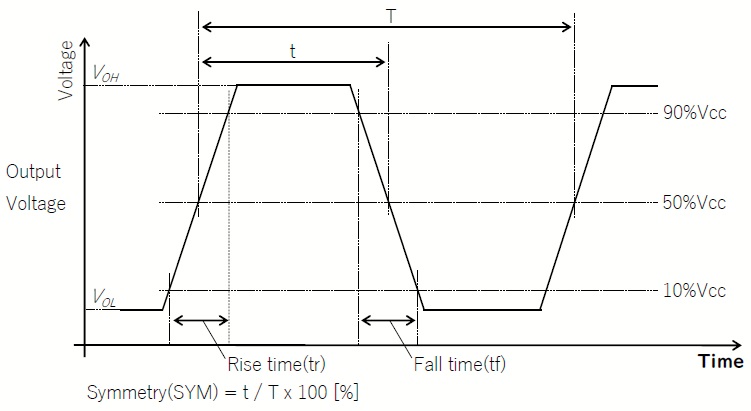

Output Wave 1
