Crystal Oscillator SPXO

2725Z *NRND

RoHS Compliant Directive 2011/65/EU Directive(EU)2015/863

Pb free

Application

・Compact mobile information equipment, such as DVC, DSC, notebook PC, and PDA

Features

・Power saving-type crystal oscillator, capable of being driven by 1.8 V power supply
・Stand-by current : 3 μA or less
・Compact and light. Dimensions : 5.0 x 3.2 x 1.0 mm, weight : 0.06 g
・Automatic mounting by taping and IR reflow (lead free soldering) is possible
・Lead-free

Related Documents

Data sheet

Taping and Reel

Mount condition

Measurement Circuit

RoHS

REACH

Halogen Free

Related Sites

Distributor Inventory

List of Online Distributors
Item Symbol Value Unit
Nominal frequency range fnom
2.5 ≦ F ≦ 40
MHz
Package size (L×W×H) - 5.0×3.2×1.0 mm
Supply voltage Vcc
+1.8
V
Current consumption ICC
Max. 2
mA
Stand-by current IST
Max. 3
μA
Output specification -

CMOS

 -
Load CL Max. 5 pF
Storage temperature range Tstr -55 to +125 ℃
Operating temperature range Topr
-20 to +70 -10 to +70 -10 to +70
℃
Overall frequency tolerance Df/fnom
Max. ±100 Max. ±50 Max. ±30
ppm
Output voltage VOL
Max. 0.1Vcc
V
Output voltage VOH
Min. 0.9Vcc
V
Rise (tr), fall (tf) time tr/tf
Max. 6
ns
Symmetry SYM 40 to 60 %
Start-up time tsu
Max. 4
ms
Specification number -
NSA6297A NSA6297B NSA6297C
-

Stand-by function

#1 PAD input #3 PAD output
H Level (0.7 VCC to VCC) or OPEN Operating
L Level (0.3 VCC max) High impedance

External dimensions

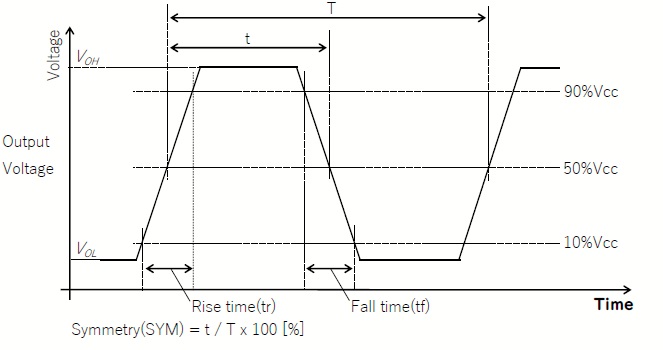

Output Wave 1
