Crystal Oscillator SPXO
NP3225SAA
Application
・Automotive safety (Automotive camera, Automotive computer for autonomous driving)
Features
・LVPECL Differential output SPXO
・Compact : 3.2 x 2.5 x 0.9 mm
・Supply voltage : +3.3V
・Low phase jitter : Typ. 90 fs @156.25 MHz
・Automatic mounting by taping and IR reflow (lead-free soldering) is possible
・Lead-free
・Conforms to AEC-Q100/200
| Item | Symbol | Value | Unit | |
|---|---|---|---|---|
| Nominal frequency range | fnom |
|
MHz | |
| Package size (L×W×H) | - | 3.2×2.5×0.9 | mm | |
| Supply voltage | Vcc |
|
V | |
| Current consumption | ICC |
|
mA | |
| Stand-by current | IST |
|
μA | |
| Output specification | - |
LVPECL |
- | |
| Load | 50 | Ω | ||
| Storage temperature range | Tstr | -55 to +125 | ℃ | |
| Operating temperature range | Topr |
|
℃ | |
| Overall frequency tolerance | Δf/fnom |
|
ppm | |
| Output voltage | VOL |
|
V | |
| Output voltage | VOH |
|
V | |
| Rise (tr), fall (tf) time (20% to 80% WaveForm) | tr/tf |
|
ns | |
| Symmetry (at 50 % Waveform) | SYM | 40 to 60 | % | |
| Start-up time | tsu |
|
ms | |
| Phase jitter | tpj |
|
ps | |
| Specification number | - |
|
- |
The specifications listed are our standard specifications. Please inform "Model", "Frequency" and "Specification number" when inquiring or placing an order. Specifications other than those listed above are also available, so please do not hesitate to contact us.
Stand-by function
| #1 PAD input | #4, 5 PAD output |
|---|---|
| H Level (Min0.7 VCC) or OPEN | Operating |
| L Level (Max0.3 VCC) | High impedance |
External dimensions

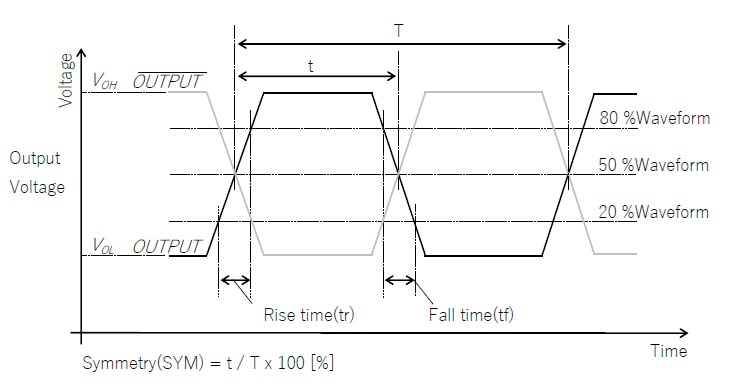

Output Wave 1
