Crystal Oscillator SPXO
NP5032SC *NRND
Application
・SONET
・SDH
・Equipment related to GbEthernet
Features
・HCSL Differential output SPXO
・Compact : 5.0 x 3.2 x 1.2 mm
・Supply voltage : +2.5V to +3.3V
・Low phase jitter ：Typ. 120 fs @135 MHz
・Automatic mounting by taping and IR reflow (lead-free soldering) is possible
・Lead-free
| Item | Symbol | Value | Unit | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Nominal frequency range | fnom |
|
MHz | ||||||
| Package size (L×W×H) | - | 5.0×3.2×1.2 | mm | ||||||
| Supply voltage | Vcc |
|
V | ||||||
| Current consumption | ICC |
|
mA | ||||||
| Stand-by current | IST |
|
μA | ||||||
| Output specification | - |
HCSL |
- | ||||||
| Load | RL | 50 | Ω | ||||||
| Storage temperature range | Tstr | -55 to +125 | ℃ | ||||||
| Operating temperature range | Topr |
|
℃ | ||||||
| Overall frequency tolerance | Δf/fnom |
|
ppm | ||||||
| Output voltage | VOL |
|
V | ||||||
| Output voltage | VOH |
|
V | ||||||
| Rise (tr), fall (tf) time | tr/tf |
|
ns | ||||||
| Symmetry | SYM | 45 to 55 | % | ||||||
| Phase jitter | tpj |
|
ps | ||||||
| Specification number | - |
|
- | ||||||
Stand-by function
| #1 PAD input | #4, 5 PAD output |
|---|---|
| H Level (Min0.7 VCC) or OPEN | Operating |
| L Level (Max0.3 VCC) | High impedance |

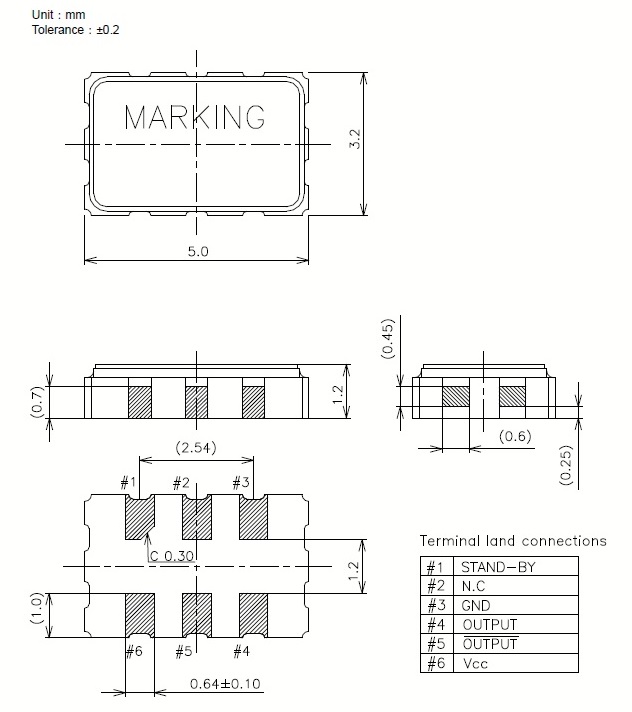

External dimensions

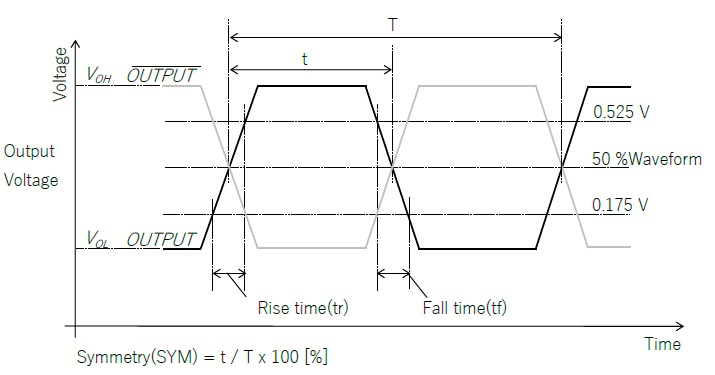

Output Wave 1
