Crystal Units (MHz range)

NX5032GA-Standard *NRND

RoHS Compliant Directive 2011/65/EU Directive(EU)2015/863

Application

・Consumer equipment

Features

Suitable for car accessories and reference clock source for video and audio equipment
・Compact and thin (Typ. : 5.0×3.2×1.3 mm)
・Low frequency from 8 MHz
・Excellent environmental resistance performance such as heat and shock resistance
・Reflow temperature profile (Available for lead free soldering)

Related Documents

Data sheet

Taping and Reel

Mount condition

RoHS

REACH

Halogen Free

Related Sites

Distributor Inventory

List of Online Distributors
Item Symbol Value Unit
Nominal frequency
8 ? F < 10.5 10.5 ? F ? 50 8 ? F < 10.5 10.5 ? F < 50 50 ? F ? 55
MHz
Package size (L×W×H) - 5.0×3.2×1.3 mm
Overtone order -
Fundamental
-
Frequency tolerance (@ +25℃) -
±30 ±20
ppm
Frequency temperature characteristics (refer to +25°C) -
±50 ±30
ppm
Equivalent series resistance -
Max. 300 (8 ≤ F < 9.5MHz)
Max. 150 (9.5 ≤ F < 10MHz)
Max. 120 (10 ≤ F < 20MHz)
Max. 70 (20 ≤ F < 30MHz)
Max. 50 (30 ≤ F ≤ 50MHz)
 Max. 300 (8 ≤ F < 9.5MHz)
Max. 100 (9.5 ≤ F < 15MHz)
Max. 50 (15 ≤ F ≤ 55MHz)
Ω
Load capacitance CL
8
pF
Level of drive -
50 (Max. 500)
μW
Operating temperature range Topr
-40 to +85 -10 to +70
℃
Storage temperature range Tstr
-40 to +125 -40 to +85
℃
Insulation resistance - Min. 500 MΩ
Airtightness - Max. 3.0ppb Pa m3/s
Specification number -
STD-CSK-7 STD-CSK-8 STD-CSK-3 STD-CSK-4 STD-CKW-3
-

The specifications listed are our standard specifications. Please inform "Model", "Frequency" and "Specification number" when inquiring or placing an order. Specifications other than those listed above are also available. Contact us if you require them.

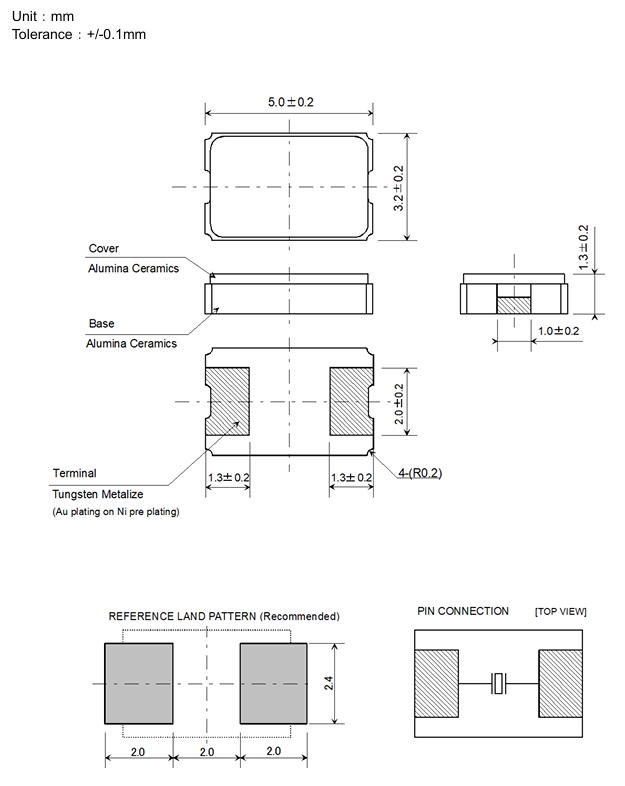

External dimensions
