Crystal Oscillator SPXO
2725T-Wireless LAN *NRND
Application
・Wireless LAN
Features
・High-precision type suitable for wireless LAN compatible information terminal equipment
・Ultra-compact and light. Dimensions : 5.0 x 3.2 x 1.0 mm, weight : 0.06 g
・Automatic mounting by taping and IR reflow (lead-free soldering) is possible
・Lead-free
| Item | Symbol | Value | Unit | |||
|---|---|---|---|---|---|---|
| Nominal frequency range | fnom |
|
MHz | |||
| Package size (L×W×H) | - | 5.0×3.2×1.0 | mm | |||
| Supply voltage | Vcc |
|
V | |||
| Current consumption | ICC |
|
mA | |||
| Stand-by current | IST |
|
- | |||
| Output specification | - |
CMOS |
- | |||
| Load | CL | Max. 15 | pF | |||
| Storage temperature range | Tstr | -55 to +125 | ℃ | |||
| Operating temperature range | Topr |
|
℃ | |||
| Overall frequency tolerance | Df/fnom |
|
ppm | |||
| Output voltage | VOL |
|
V | |||
| Output voltage | VOH |
|
V | |||
| Rise (tr), fall (tf) time | tr/tf |
|
ns | |||
| Symmetry | SYM | 45 to 55 | % | |||
| Start-up time | tsu |
|
ms | |||
| Specification number | - |
|
- | |||
Stand-by function
| #1 PAD input | #3 PAD output |
|---|---|
| H Level (0.7 VCC to VCC) or OPEN | Operating |
| L Level (0.3 VCC max) | High impedance |
External dimensions

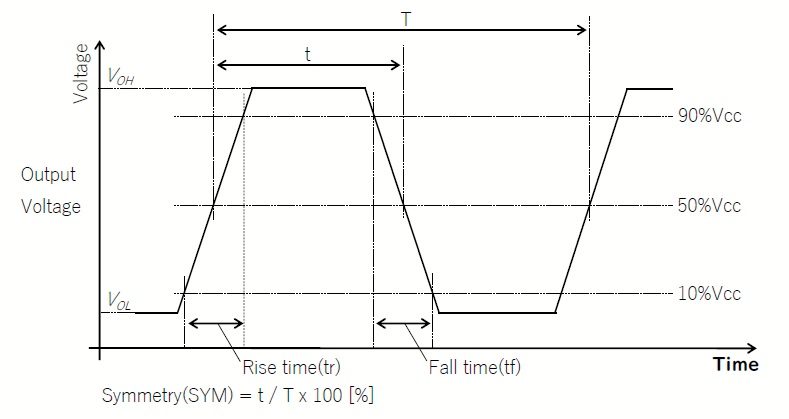

Output Wave 1
