Crystal Oscillator TCXO
NT2016SE- Automotive02
Application
・Automotive communication (e.g., Automotive navigation, Telematics, and others)
・Wireless module
・GPS/GNSS modules, etc.
Features
・Crystal oscillator with highly stable frequency / temperature characteristics suitable for GPS
・Low power supply voltage (Supports DC +1.7 V to +3.3 V. Standard specification : +1.8 V)
・Ultra-compact and light with a height, cubic volume, and weight of Max. 0.8 mm, 0.0022 cm3, and 0.008 g, respectively
・Low power consumption
・Surface mount crystal oscillator (Available for reflow soldering)
・Reflow temperature profile (Available for lead free soldering)
・AFC (Automatic Frequency Control) function available as an option
・Conforms to AEC-Q200
Item | Symbol | Value | Unit | ||||
---|---|---|---|---|---|---|---|
Nominal frequency range | fnom |
|
MHz | ||||
Package size (L×W×H) | - |
|
mm | ||||
Supply voltage | VCC |
|
V | ||||
Output specification | - |
|
- | ||||
Output load condition | - |
|
- | ||||
Current consumption | ICC |
|
mA | ||||
Storage temperature range | Tstr | -40 to +105 | ℃ | ||||
Operating temperature range | Topr |
|
℃ | ||||
Frequency/voltage coefficient | Δf/f | Max. ±0.2 | ppm | ||||
Frequency/load coefficient | Δf/f | Max. ±0.2 | ppm | ||||
Frequency tolerance | Δf/fnom | Max. ±2.0 | ppm | ||||
Frequency temperature characteristics | Δf/f |
|
ppm | ||||
Long-term frequency stability | Δf/f |
|
ppm/year | ||||
Output voltage | - | Min. 0.8 | Vp-p | ||||
Specification number | - |
|
- |
The specifications listed are our standard specifications. Please inform "Model", "Frequency" and "Specification number" when inquiring or placing an order. Specifications other than those listed above are also available, so please do not hesitate to contact us.

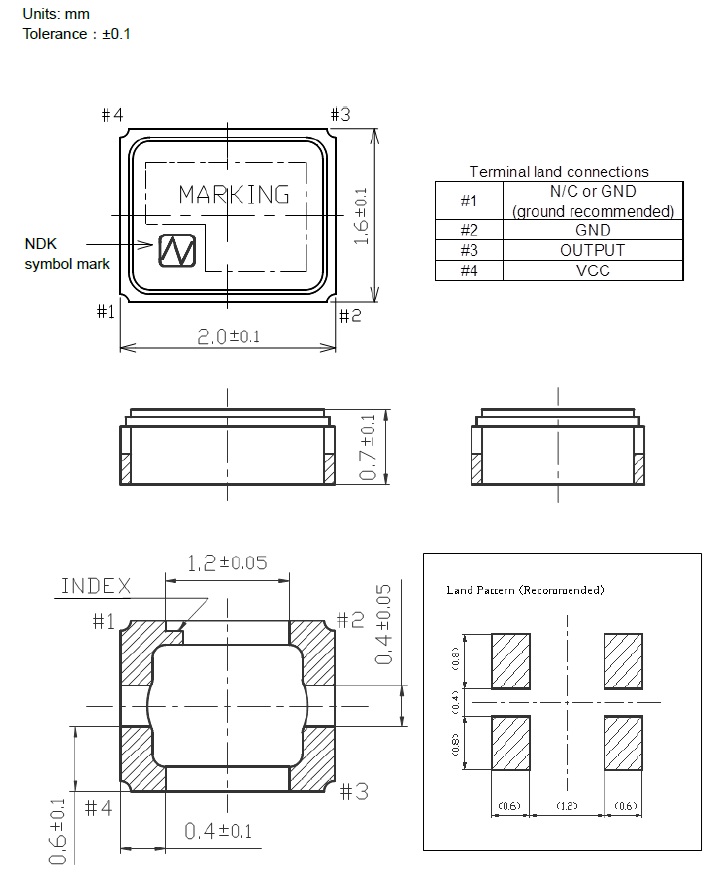

External dimensions
