Crystal Oscillator TCXO

NT5032SQ

RoHS Compliant Directive 2011/65/EU Directive(EU)2015/863

Pb free

Application

・RU for Base Station
・NIC for Data Center Equipment
・STRATUM3 compatible devices

Features

・Temperature characteristics : ±50 ppb/-40 to +105 °C
・Output waveform can be selected from CMOS and Clipped Sine
・Low current consumption : Typ. 7 mA (40 MHz)
・Dimensions : 5.0×3.2 mm, Height : 1.35 mm
・Compact package
・With Enable / Disable function.
・MTIE and TDEV characteristics comply with ITU-T G.813.

Related Documents

Data sheet

Taping and Reel

Mount condition

Measurement Circuit

RoHS

REACH

Halogen Free

Related Sites

Distributor Inventory

List of Online Distributors
Item Symbol Value Unit
Nominal frequency range fnom
10 ≦ F ≦ 56
MHz
Package size (L×W×H) -
5.0×3.2×1.35
mm
Supply voltage VCC
+3.3
V
Output load condition -
CMOS : Typ. 15 pF
Clipped Sine : 10 kΩ // 10 pF
-
Current consumption ICC
CMOS : Max.10mA（≦ 54MHz）/　12mA（≧ 54MHz）
CLipped Sine : Max.10mA（≦54MHz）/　12mA（≧ 54MHz）
mA
Storage temperature range Tstr -40 to +105 ℃
Operating temperature range Topr
-40 to +105
℃
Frequency tolerance Δf/fnom Max. ±4.35 (10,20,38.88,40MHz)
Max. ±4.40 (25,48,50,54,56MHz) 		ppm
Frequency temperature characteristics Δf/f
CMOS :
Max .±0.05 (-40 to +105℃)
Max .±0.10 (-40 to +105℃) 		 Clipped Sine :
Max .±0.05 (-40 to +105℃)
Max .±0.10 (-40 to +105℃)
ppm
Output voltage - CMOS : Max. 10 % VCC (VOL) / 90 % VCC (VOH)V
Clipped Sine : Min. 0.8 Vp-p 		-
Rise (tr), fall (tf) time tr/tf
CMOS : Max. 8
ns
Symmetry -
CMOS : 45 to 55
%
Enable/Disable function - Enable : Open or Min.80VCC
Disable : Max. 20%VCC 		-
Specification number -
CMOS : NSC5494A Clipped Sine : NSC5495A
-

The specifications listed are our standard specifications. Please inform "Model", "Frequency" and "Specification number" when inquiring or placing an order. Specifications other than those listed above are also available, so please do not hesitate to contact us.

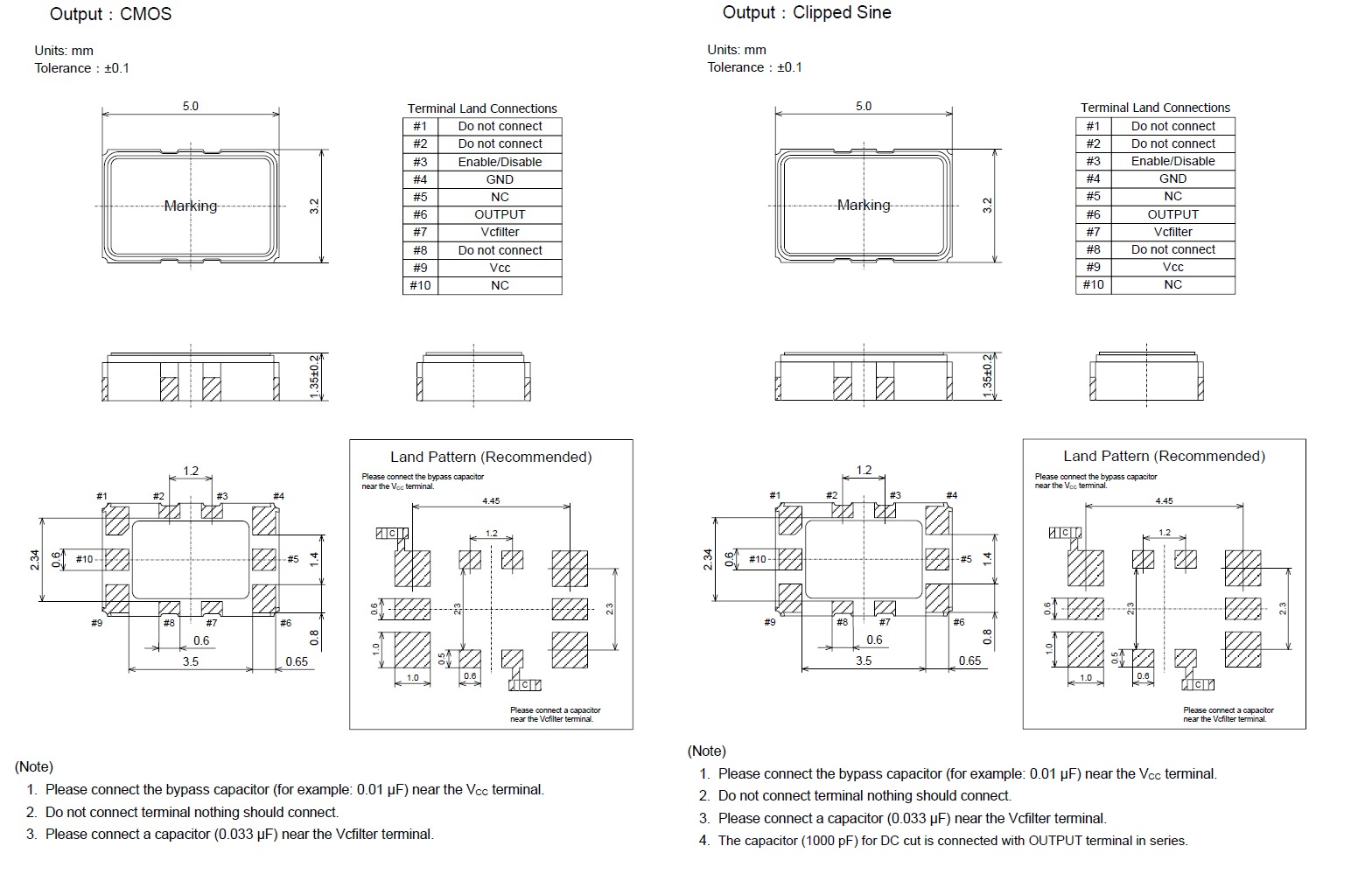

External dimensions
