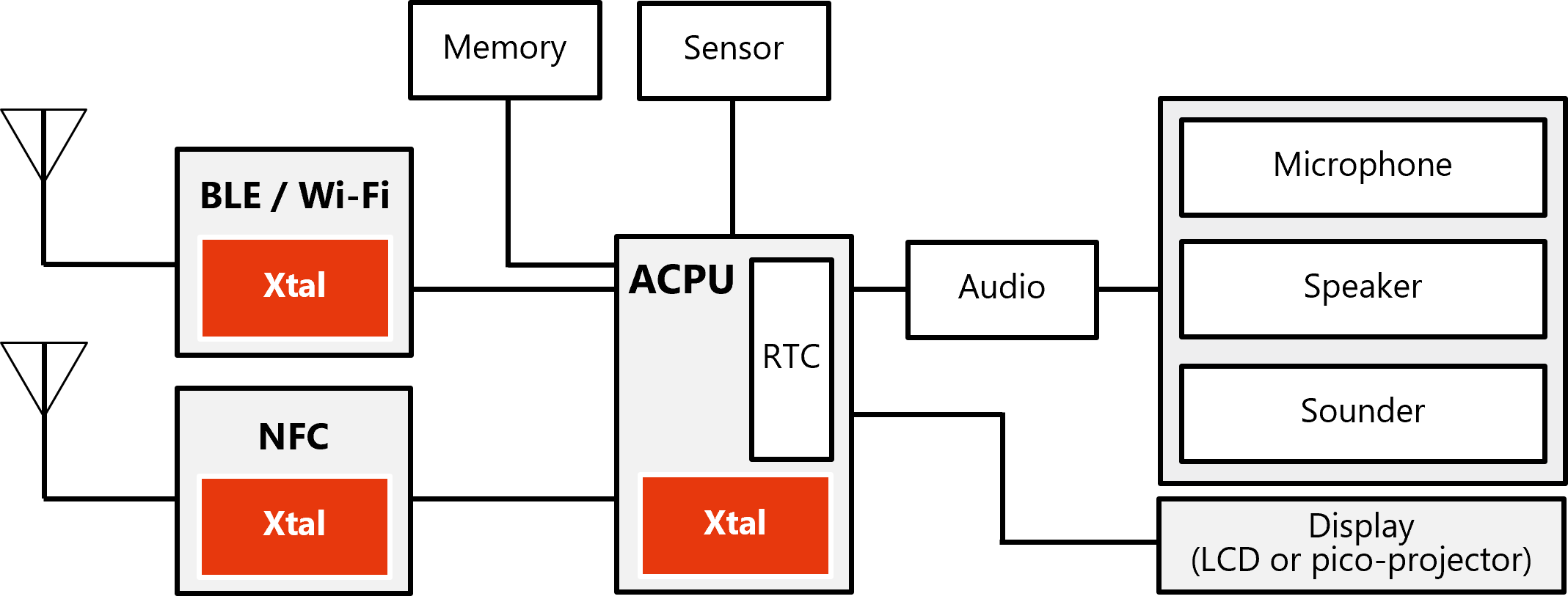

ブロック図 (ウェアラブル)

目次

活動量計

スマートウォッチ

ワイヤレスイヤホン

AR/VR

活動量計


Function Product Type Holder Status PKG Size (mm) Frequency (Hz) Temp. Range note
5G / 4G Xtal NX1210AB MP 1.2 x 1.0 x 0.25 26 to 52M -30 to +85℃ 4 pads
5G / 4G Xtal NX1612SA MP 1.6 x 1.2 x 0.30 24 to 80M -30 to +85℃ 4 pads
5G / 4G Xtal NX2016SA MP 2.0 x 1.6 x 0.45 16 to 80M -30 to +85℃ 4 pads
5G / 4G Xtal NX2520SA MP 2.5 x 2.0 x 0.50 16 to 80M -40 to +85℃ 4 pads
5G / 4G Xtal NX3225SA MP 3.2 x 2.5 x 0.55 12 to 64M -40 to +85℃ 4 pads
Wi-Fi / BT Xtal NX1008AA MP 1.0 x 0.8 x 0.25 32 to 80M -30 to +85℃ 4 pads
Wi-Fi / BT Xtal NX1008AB MP 1.0 x 0.8 x 0.22 40 to 96M -30 to +85℃ 4 pads
Wi-Fi / BT Xtal NX1210AB MP 1.2 x 1.0 x 0.25 26 to 52M -30 to +85℃ 4 pads
Wi-Fi / BT Xtal NX1612SA MP 1.6 x 1.2 x 0.30 24 to 80M -30 to +85℃ 4 pads
Wi-Fi / BT Xtal NX2016SA MP 2.0 x 1.6 x 0.45 16 to 80M -30 to +85℃ 4 pads
Wi-Fi / BT Xtal NX2520SA MP 2.5 x 2.0 x 0.50 16 to 80M -40 to +85℃ 4 pads
Wi-Fi / BT Xtal NX3225SA MP 3.2 x 2.5 x 0.55 12 to 64M -40 to +85℃ 4 pads
LPWA Xtal NX1008AA MP 1.0 x 0.8 x 0.25 32 to 80M -30 to +85℃ 4 pads
LPWA Xtal NX1008AB MP 1.0 x 0.8 x 0.22 40 to 96M -30 to +85℃ 4 pads
LPWA Xtal NX1210AB MP 1.2 x 1.0 x 0.25 26 to 52M -30 to +85℃ 4 pads
LPWA Xtal NX1612SA MP 1.6 x 1.2 x 0.30 24 to 80M -30 to +85℃ 4 pads
LPWA Xtal NX2016SA MP 2.0 x 1.6 x 0.45 16 to 80M -30 to +85℃ 4 pads
LPWA Xtal NX2520SA MP 2.5 x 2.0 x 0.50 16 to 80M -40 to +85℃ 4 pads
LPWA Xtal NX3225SA MP 3.2 x 2.5 x 0.55 12 to 64M -40 to +85℃ 4 pads
GNSS TCXO NT1612SA
(±0.5ppm)		 MP 1.6 x 1.2 x 0.55 12 to 52M -30 to +85℃ Clipped Sine
GNSS TCXO NT1612SA
(±2.0ppm)		 MP 1.6 x 1.2 x 0.55 12 to 52M -30 to +85℃ Clipped Sine
GNSS TCXO NT2016SA
(±0.5ppm)		 MP 2.0 x 1.6 x 0.8 12 to 52M -30 to +85℃ Clipped Sine
GNSS TCXO NT2016SA
(±2.0ppm)		 MP 2.0 x 1.6 x 0.8 12 to 52M -30 to +85℃ Clipped Sine
GNSS TCXO NT2016SB MP 2.0 x 1.6 x 0.8 12 to 52M -30 to +85℃ Clipped Sine
GNSS TCXO NT2016SJA
(±0.5ppm)		 MP 2.0 x 1.6 x 0.8 16 to 76.8M -30 to +85℃ Clipped Sine
GNSS TCXO NT2016SJA
(±2.0ppm)		 MP 2.0 x 1.6 x 0.8 16 to 76.8M -30 to +85℃ Clipped Sine

スマートウォッチ


Function Product Type Holder Status PKG Size (mm) Frequency (Hz) Temp. Range note
BLE / Wi-Fi Xtal NX1008AA MP 1.0 x 0.8 x 0.25 32 to 80M -30 to +85℃ 4 pads
BLE / Wi-Fi Xtal NX1008AB MP 1.0 x 0.8 x 0.22 40 to 96M -30 to +85℃ 4 pads
BLE / Wi-Fi Xtal NX1210AB MP 1.2 x 1.0 x 0.25 26 to 52M -30 to +85℃ 4 pads
BLE / Wi-Fi Xtal NX1612SA MP 1.6 x 1.2 x 0.30 24 to 80M -30 to +85℃ 4 pads
BLE / Wi-Fi Xtal NX2016SA MP 2.0 x 1.6 x 0.45 16 to 80M -30 to +85℃ 4 pads
BLE / Wi-Fi Xtal NX2520SA MP 2.5 x 2.0 x 0.50 16 to 80M -40 to +85℃ 4 pads
BLE / Wi-Fi Xtal NX3225SA MP 3.2 x 2.5 x 0.55 12 to 64M -40 to +85℃ 4 pads
NFC / 27.12MHz Xtal NX1008AA MP 1.0 x 0.8 x 0.25 27 to 80M -30 to +85℃ 4 pads
NFC / 27.12MHz Xtal NX1008AB MP 1.0 x 0.8 x 0.22 27 to 96M -30 to +85℃ 4 pads
NFC / 27.12MHz Xtal NX1210AB MP 1.2 x 1.0 x 0.25 26 to 52M -30 to +85℃ 4 pads
NFC / 27.12MHz Xtal NX1612SA MP 1.6 x 1.2 x 0.30 24 to 80M -30 to +85℃ 4 pads
NFC / 27.12MHz Xtal NX2016SA MP 2.0 x 1.6 x 0.45 16 to 80M -30 to +85℃ 4 pads
NFC / 27.12MHz Xtal NX2520SA MP 2.5 x 2.0 x 0.50 16 to 80M -40 to +85℃ 4 pads
NFC / 27.12MHz Xtal NX3225SA MP 3.2 x 2.5 x 0.55 12 to 64M -40 to +85℃ 4 pads
ACPU Xtal NX1610SA MP 1.6 x 1.0 x 0.45 0.032768M -40 to +85℃ 2 pads
ACPU Xtal NX1610SE MP 1.6 x 1.0 x 0.45 0.032768M -40 to +85℃ 2 pads
ACPU Xtal NX2012SA MP 2.0 x 1.2 x 0.55 0.032768M -40 to +85℃ 2 pads
ACPU Xtal NX2012SE MP 2.0 x 1.2 x 0.55 0.032768M -40 to +85℃ 2 pads
ACPU Xtal NX3215SA MP 3.2 x 1.5 x 0.8 0.032768M -40 to +85℃ 2 pads
ACPU Xtal NX3215SE MP 3.2 x 1.5 x 0.8 0.032768M -40 to +85℃ 2 pads

ワイヤレスイヤホン


Function Product Type Holder Status PKG Size (mm) Frequency (Hz) Temp. Range note
Bluetooth Xtal NX1008AA MP 1.0 x 0.8 x 0.25 32 to 80M -30 to +85℃ 4 pads
Bluetooth Xtal NX1008AB MP 1.0 x 0.8 x 0.22 40 to 96M -30 to +85℃ 4 pads
Bluetooth Xtal NX1210AB MP 1.2 x 1.0 x 0.25 26 to 52M -30 to +85℃ 4 pads
Bluetooth Xtal NX1612SA MP 1.6 x 1.2 x 0.30 24 to 80M -30 to +85℃ 4 pads
Bluetooth Xtal NX2016SA MP 2.0 x 1.6 x 0.45 16 to 80M -30 to +85℃ 4 pads
Bluetooth Xtal NX2520SA MP 2.5 x 2.0 x 0.50 16 to 80M -40 to +85℃ 4 pads
Bluetooth Xtal NX3225SA MP 3.2 x 2.5 x 0.55 12 to 64M -40 to +85℃ 4 pads
Power Management Xtal NX1610SA MP 1.6 x 1.0 x 0.45 0.032768M -40 to +85℃ 2 pads
Power Management Xtal NX1610SE MP 1.6 x 1.0 x 0.45 0.032768M -40 to +85℃ 2 pads
Power Management Xtal NX2012SA MP 2.0 x 1.2 x 0.55 0.032768M -40 to +85℃ 2 pads
Power Management Xtal NX2012SE MP 2.0 x 1.2 x 0.55 0.032768M -40 to +85℃ 2 pads
Power Management Xtal NX3215SA MP 3.2 x 1.5 x 0.8 0.032768M -40 to +85℃ 2 pads
Power Management Xtal NX3215SE MP 3.2 x 1.5 x 0.8 0.032768M -40 to +85℃ 2 pads


Function Product Type Holder Status PKG Size (mm) Frequency (Hz) Temp. Range note
APP Xtal NX1008AA MP 1.0 x 0.8 x 0.25 32 to 80M -30 to +85℃ 4 pads
APP Xtal NX1008AB MP 1.0 x 0.8 x 0.22 40 to 96M -30 to +85℃ 4 pads
APP Xtal NX1210AB MP 1.2 x 1.0 x 0.25 26 to 52M -30 to +85℃ 4 pads
APP Xtal NX1612SA MP 1.6 x 1.2 x 0.30 24 to 80M -30 to +85℃ 4 pads
APP Xtal NX2016SA MP 2.0 x 1.6 x 0.45 16 to 80M -30 to +85℃ 4 pads
APP Xtal NX2520SA MP 2.5 x 2.0 x 0.50 16 to 80M -40 to +85℃ 4 pads
APP Xtal NX3225SA MP 3.2 x 2.5 x 0.55 12 to 64M -40 to +85℃ 4 pads


Function Product Type Holder Status PKG Size (mm) Frequency (Hz) Temp. Range note
Bluetooth /
Audio Processor		 Xtal NX1008AA MP 1.0 x 0.8 x 0.25 32 to 80M -30 to +85℃ 4 pads
Bluetooth /
Audio Processor		 Xtal NX1008AB MP 1.0 x 0.8 x 0.22 40 to 96M -30 to +85℃ 4 pads
Bluetooth /
Audio Processor		 Xtal NX1210AB MP 1.2 x 1.0 x 0.25 26 to 52M -30 to +85℃ 4 pads
Bluetooth /
Audio Processor		 Xtal NX1612SA MP 1.6 x 1.2 x 0.30 24 to 80M -30 to +85℃ 4 pads
Bluetooth /
Audio Processor		 Xtal NX2016SA MP 2.0 x 1.6 x 0.45 16 to 80M -30 to +85℃ 4 pads
Bluetooth /
Audio Processor		 Xtal NX2520SA MP 2.5 x 2.0 x 0.50 16 to 80M -40 to +85℃ 4 pads
Bluetooth /
Audio Processor		 Xtal NX3225SA MP 3.2 x 2.5 x 0.55 12 to 64M -40 to +85℃ 4 pads

AR/VR


Function Product Type Holder Status PKG Size (mm) Frequency (Hz) Temp. Range note
Bluetooth Xtal NX1008AA MP 1.0 x 0.8 x 0.25 32 to 80M -30 to +85℃ 4 pads
Bluetooth Xtal NX1008AB MP 1.0 x 0.8 x 0.22 40 to 96M -30 to +85℃ 4 pads
Bluetooth Xtal NX1210AB MP 1.2 x 1.0 x 0.25 26 to 52M -30 to +85℃ 4 pads
Bluetooth Xtal NX1612SA MP 1.6 x 1.2 x 0.30 24 to 80M -30 to +85℃ 4 pads
Bluetooth Xtal NX2016SA MP 2.0 x 1.6 x 0.45 16 to 80M -30 to +85℃ 4 pads
Bluetooth Xtal NX2520SA MP 2.5 x 2.0 x 0.50 16 to 80M -40 to +85℃ 4 pads
Bluetooth Xtal NX3225SA MP 3.2 x 2.5 x 0.55 12 to 64M -40 to +85℃ 4 pads


Function Product Type Holder Status PKG Size (mm) Frequency (Hz) Temp. Range note
Bluetooth Xtal NX1008AA MP 1.0 x 0.8 x 0.25 32 to 80M -30 to +85℃ 4 pads
Bluetooth Xtal NX1008AB MP 1.0 x 0.8 x 0.22 40 to 96M -30 to +85℃ 4 pads
Bluetooth Xtal NX1210AB MP 1.2 x 1.0 x 0.25 26 to 52M -30 to +85℃ 4 pads
Bluetooth Xtal NX1612SA MP 1.6 x 1.2 x 0.30 24 to 80M -30 to +85℃ 4 pads
Bluetooth Xtal NX2016SA MP 2.0 x 1.6 x 0.45 16 to 80M -30 to +85℃ 4 pads
Bluetooth Xtal NX2520SA MP 2.5 x 2.0 x 0.50 16 to 80M -40 to +85℃ 4 pads
Bluetooth Xtal NX3225SA MP 3.2 x 2.5 x 0.55 12 to 64M -40 to +85℃ 4 pads
Power Management Xtal NX1008AA MP 1.0 x 0.8 x 0.25 32 to 80M -30 to +85℃ 4 pads
Power Management Xtal NX1008AB MP 1.0 x 0.8 x 0.22 40 to 96M -30 to +85℃ 4 pads
Power Management Xtal NX1210AB MP 1.2 x 1.0 x 0.25 26 to 52M -30 to +85℃ 4 pads
Power Management Xtal NX1612SA MP 1.6 x 1.2 x 0.30 24 to 80M -30 to +85℃ 4 pads
Power Management Xtal NX2016SA MP 2.0 x 1.6 x 0.45 16 to 80M -30 to +85℃ 4 pads
Power Management Xtal NX2520SA MP 2.5 x 2.0 x 0.50 16 to 80M -40 to +85℃ 4 pads
Power Management Xtal NX3225SA MP 3.2 x 2.5 x 0.55 12 to 64M -40 to +85℃ 4 pads
